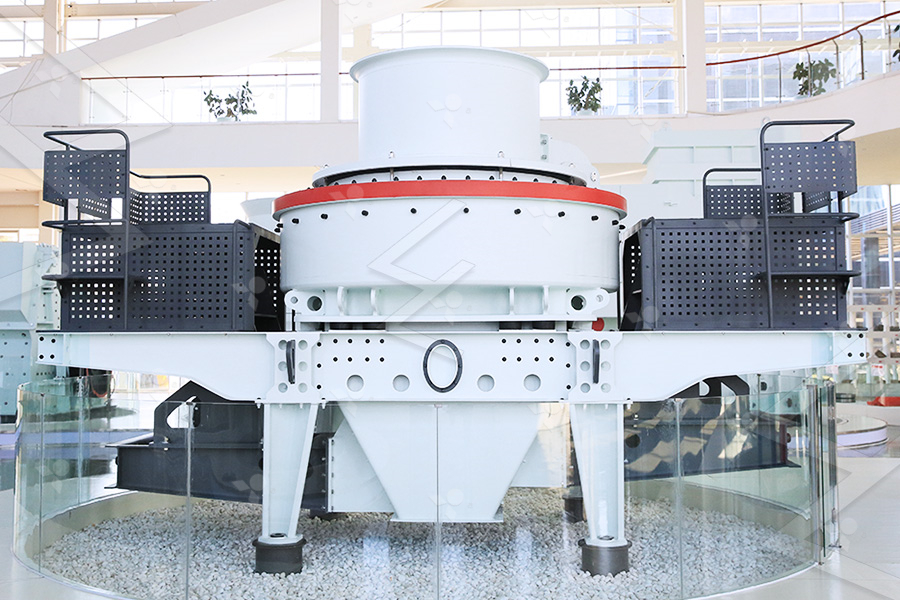

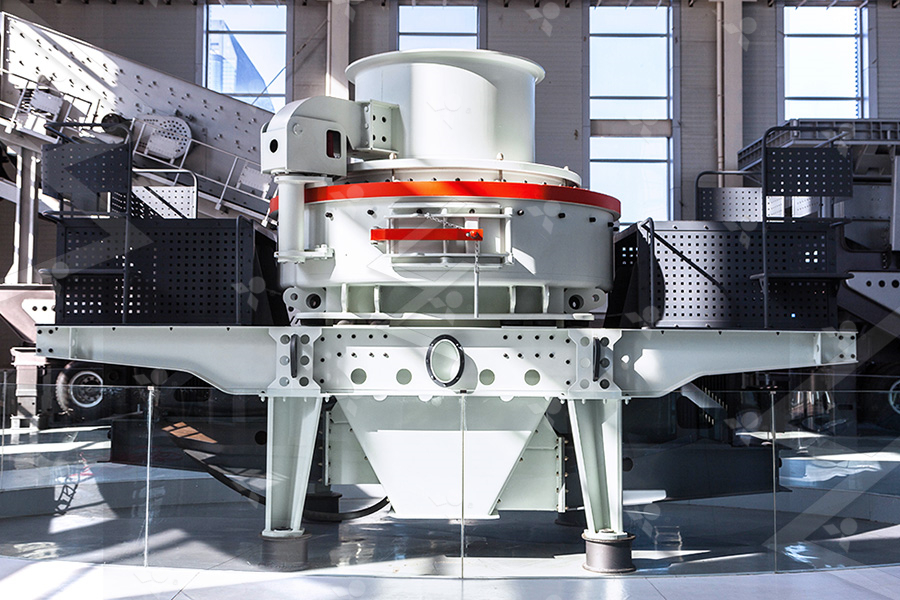

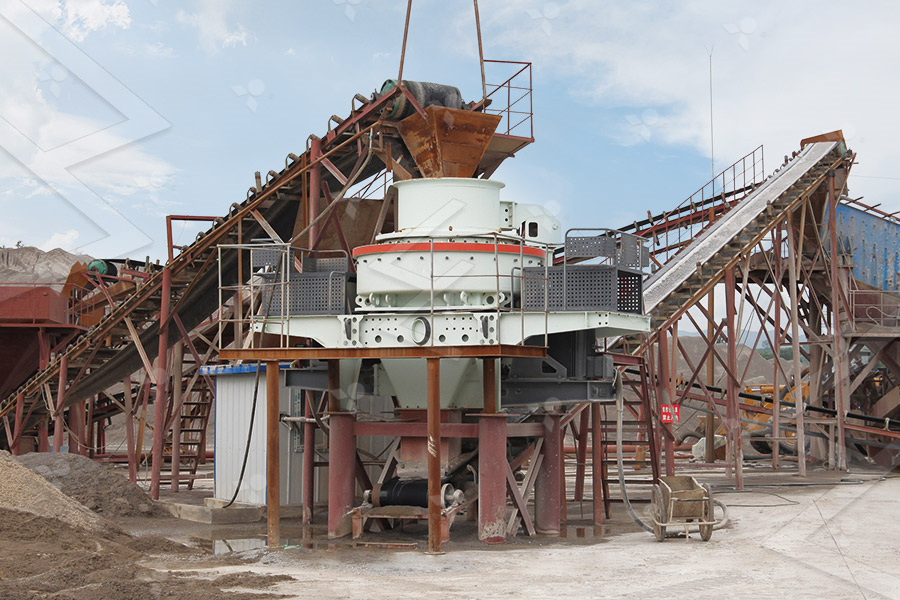

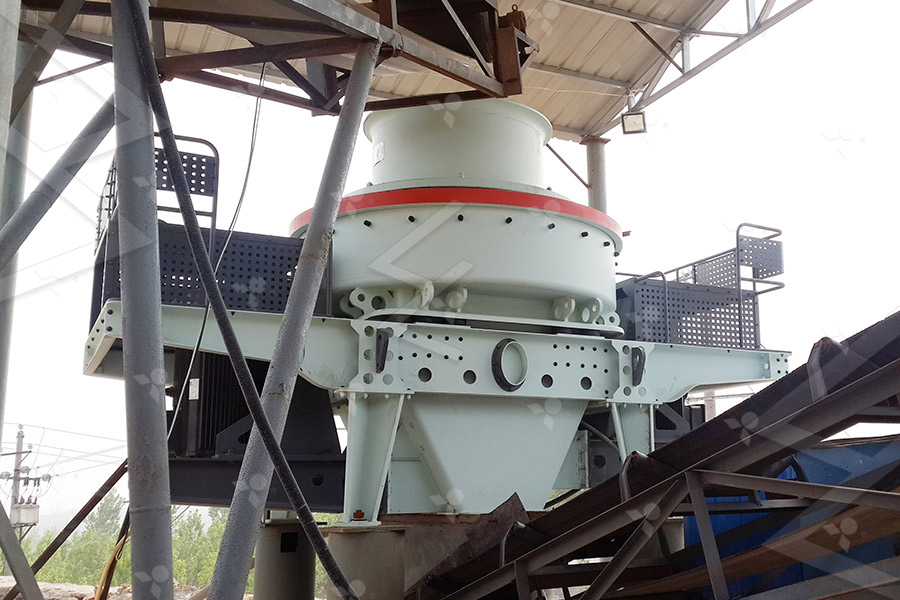

VSI5X Vertical Shaft Impact Crusher
This machine can satisfy customers’ requirements about efficiency and capacity, because its service life is increased by 48%, the costs are reduced by 30%, and the throughput of materials is improved by 30%.
Working Principle

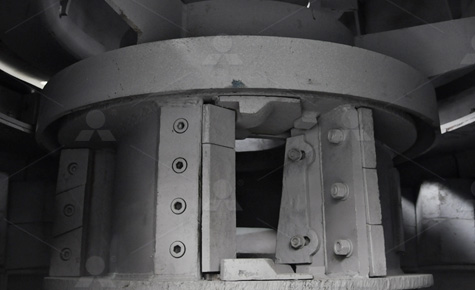

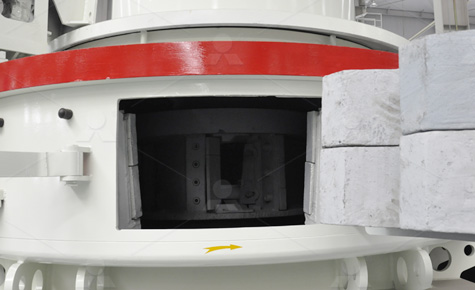

When entering into impeller, the raw material can be crushed directly by hitting impact plate after it is accelerated and threw out. The raw material can also be divided into two parts by material-dividing plate. One falls down from all around. The other enters into impeller and is accelerated, threw out and collides with the falling material and hit, rebound with impact plate. The circulation hits repeats. As the crushing is moving forward, small particle materials will gradually form a material bed around the impact plate which can improve the crushing effect and protect the machine. The desired artificial sand comes downwards though outlet finally.

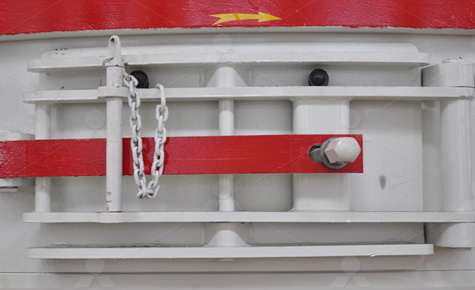

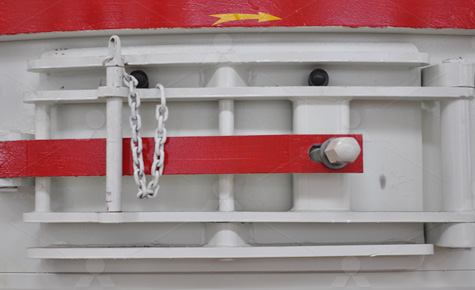

Details
Specifications - Technical Data
1. Main technical parameters:
| Model | Soft material | Hard material | Center and ring feeding | Center feeding | Main shaft speed(r/min) | Power(kw) |
| Maximum(mm) | Capacity(t/ph) | |||||
| VSI5X7615 | 35 | 30 | 150-280 | 70-140 | 1700-1900 | 75×2 |
| VSI5X8522 | 40 | 35 | 240-380 | 120-190 | 1500-1700 | 110×2 |
| VSI5X9532 | 45 | 40 | 350-540 | 180-280 | 1300-1510 | 160×2 |
| VSI5X1145 | 50 | 45 | 500-640 | 250-360 | 1100-1310 | 220×2 |
Note: Capacity depends on crushing limestone, material size, moisture and features also affect capacity.
2. Lubricating system parameter:
| Oil box volume (L) | Rated pressure (MPa) | Flow capacity (L/min) | Power (KW) | Cooling water consumption (m3/h) | Electrical heating voltage (V) | Medium |
| 240 | 0.63 | 8 | 0.31 | ≥1.2 | 220 | Bearing oil 32—46# |
