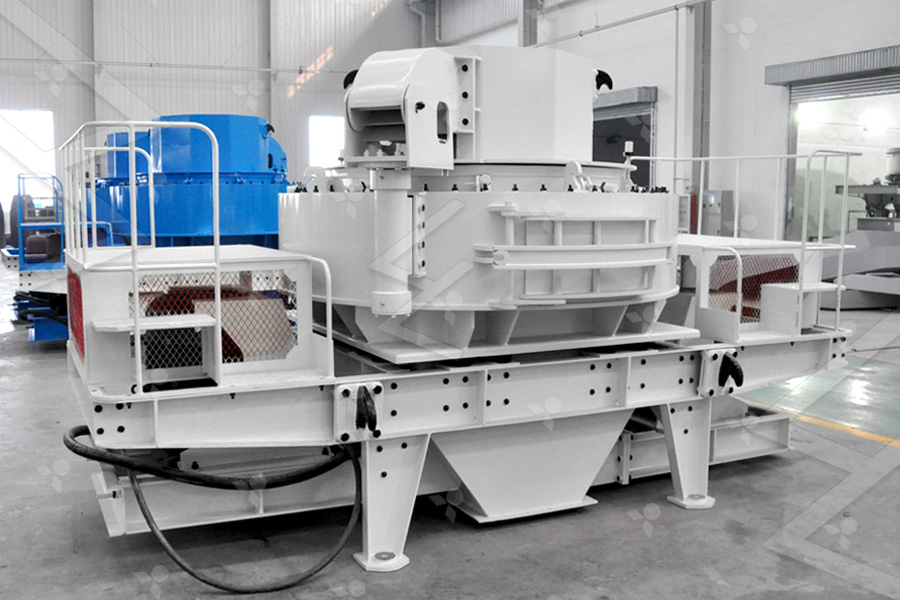

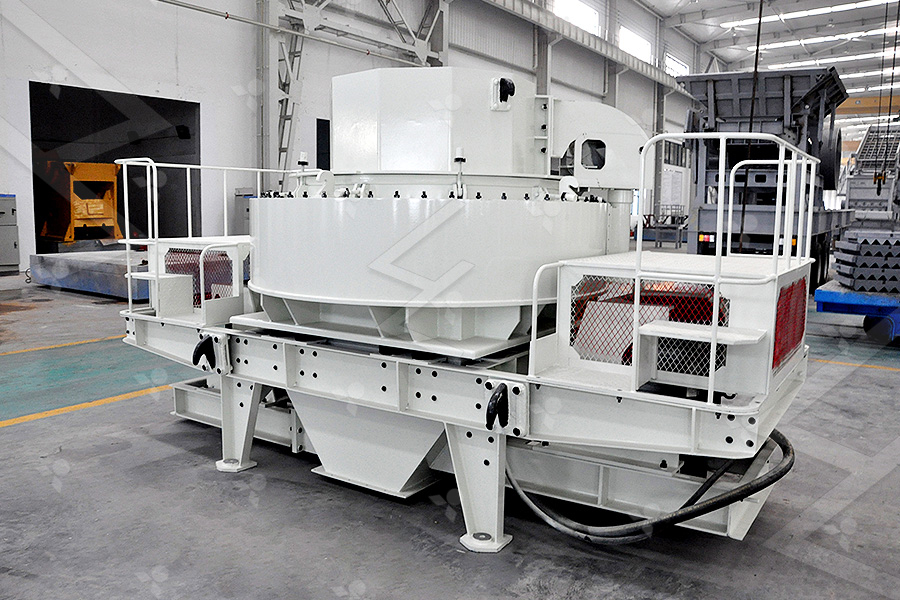

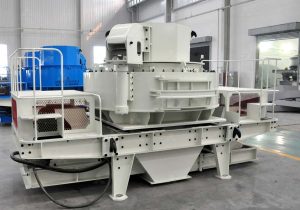

VSI Vertical Shaft Impact Crusher

Short Description :

Adopting quality raw materials and advanced technologies, VSI Vertical Shaft Impact Crusher ensures high-quality and good abrasion performance.


  • Materials: River pebbles, granite, basalt, iron ore, limestone, calcite, quartz, diabase, etc.
  • Application : Mechanism sand, bituminous concrete, metal mine, aggregates shaping
  • Capacity: 120-260 T/H (crushing)/60-260 T/H (re-shaping)

Product Details

Online Message

This machine switches the working principle “crushing between materials” to “crushing between materials and liners”, which can be used to make sand and shape stones.

Working Principle

1. Center Feeding: Raw material falls down into feed hopper, then enters impellor through central entrance hole. It is accelerated in high-speed impellor, then is thrown out at speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards through outlet.

2. Ring Feeding: Raw material falls down into feed hopper, then through ring, it is divided into two parts by material-dividing plate. One enters into impellor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impellor at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.

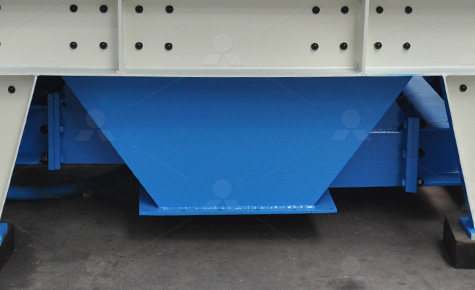

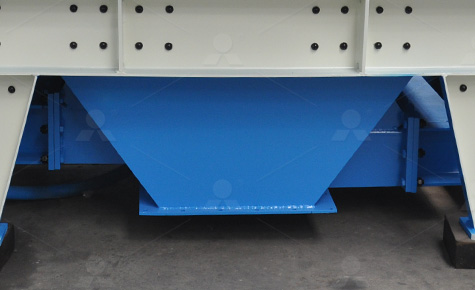

Details

Specifications - Technical Data

Model Soft material Hard material Crushing Re-Shaping Rotation speed(r/min) Power(kw)
Max Feed Size(mm) Capacity(t/h)
VSI7611 35 30 120-180 60-90 1700-1890 55×2
VSI8518 40 35 200-260 100-130 1520-1690 90×2
VSI9526 45 40 300-380 150-190 1360-1510 132×2
VSI1140 50 45 450-520 225-260 1180-1310 200×2
