Short Description :

SMP modular crushing production line of Liming Heavy Industry is a highly convenient modular and fast production line for sand and gravel crushing.

Application : quarry, metallurgical mines, building materials, highways, railways, water conservancy, chemical industry and other industries are mainly used for crushing, screening, shaping, sand making and construction waste for various stones.

Send email to us Get a quote

Product Details

Online Message

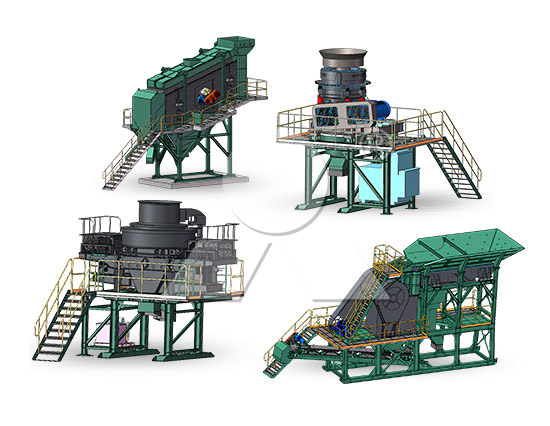

Based on the applications of fixed and mobile production lines, SMP modular production line is lunched by pre-designed crushing and screening modules and on-site layout planning. It maximizes fast delivery and quick assembly. The delivery and commissioning times is 30%-40% faster than traditional production lines. Additionally, it boasts high overall reliability and conforms to relevant international safety design standards. It also eliminates the need for large-scale concrete foundations, making it more environmentally friendly.

Details

Specifications - Technical Data

Standard factory	Maximum feeding size (MM)	Final product capacity (T/H)			Crushing series	Granular index	Modular configuration					Total power
Standard factory	Maximum feeding size (MM)	0/25	0/31.5	0/40	Crushing series	Granular index	Primary crushing module	Two and third -stage crushing modules		Screening module		Total power
SMP75H	425	70	80	95	2	●●	MPJ75	MPC75	–	MPS1544	–	227.6
SMP100H	500	85	95	105	2	●●	MPJ100	MPC100	–	MPS1864	–	299.6
SMP200H	630	180	200	200	2	●●	MPJ200	MPC300	–	MPS2164	–	480.2
SMP200HP	630	180	200	200	2	●●●	MPJ200	MPC160	MPC160	MPS2164	–	533.4
SMP200HV	630	180	195	240	2	●●●●	MPJ200	MPC300	MPV9526	MPS1863	MPS1863	808.35
SMP300H	720	280	300	320	2	●●	MPJ300	MPC315	–	MPS2464	–	652.2
SMP300HE	720	280	300	320	2	●●○	MPJ300	MPC500	–	MPS2464	–	751.7
SMP300HV	720	350	350	350	3	●●●●	MPJ300	MPC315	MPV1040	MPS2163	MPS2163	1124.55
SMP450HV	800	400	400	425	3	●●○	MPJ450	MPC250	MPC315	MPS2164	MPS2164	971.7
SMP1005S	500	90	100	120	2	●●●	MPJ100	MPF1214	–	MPS1864	–	326.6
SMP200S	630	180	200	200	2	●●●	MPJ200	MPF1213CI	–	MPS2164	–	433.7
SMP300S	720	240	270	300	2	●●●	MPJ300	MPF1315CI	–	MPS2464	–	567.7
