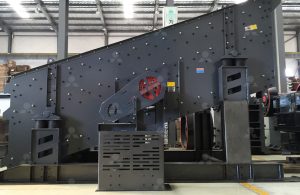

S5X Series Vibrating Screen

S5X Series Vibrating Screen
  • S5X Series Vibrating Screen
  • S5X Series Vibrating Screen
  • S5X Series Vibrating Screen
  • S5X Series Vibrating Screen
  • S5X Series Vibrating Screen

Short Description :

S5X Series Vibrating Screen is new equipment made in Liming Heavy Industry, and it is particularly suitable for heavy type, medium type and fine type, etc. screening work.


  • Materials: Feeding size ≤200mm, and various ores and rocks with grading size of 2mm--70mm
  • Application : Construction aggregates, metal mining, coal mining, chemical engineering, material recycling and etc.
  • Capacity: 45-2250 T/H
Get a quote

Product Details

Online Message

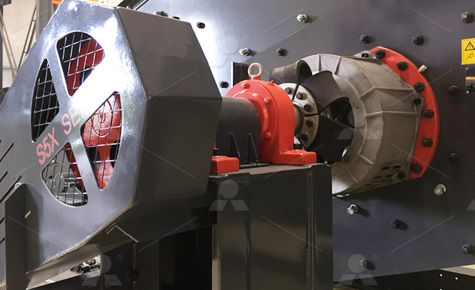

This machine adopts SV Hyper-Energy Exciter, which makes screening efficiency improved.

Working Principle

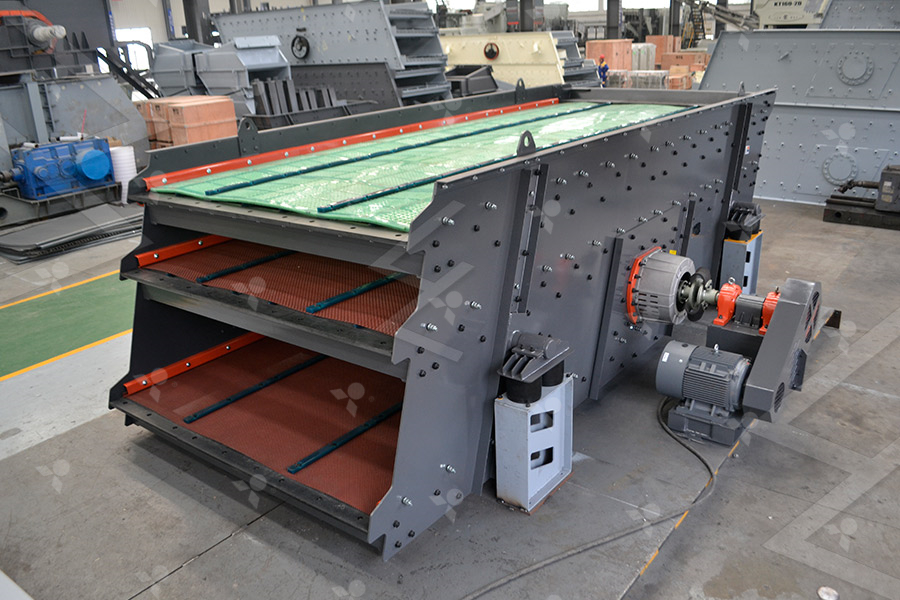

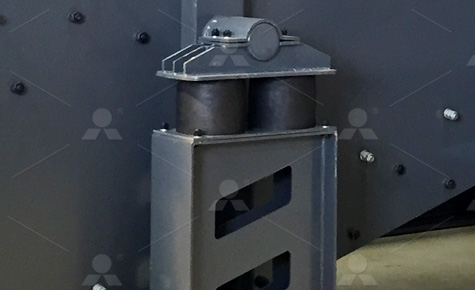

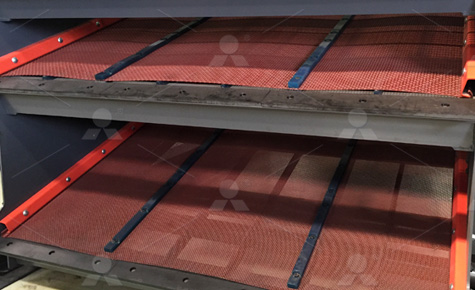

S5X vibrating screen is mainly composed of screen box, spring support groups, bearing, vibrators, transmission, motor, transmission bearings and other components. S5X vibrating screen is a machine supported by springs , block eccentric vibration as the exciter source and generated excitation force by the rotation of the eccentric , So that the screen box circumferential consequent reciprocation. The material on the inclined sieve surface successive approximation in round bouncing tumbling motion, by repeatedly comparing with mesh, smaller than the mesh size of the material through the sieve, larger than the screen hole size of materials still on the screen mesh, thereby completing the screening process.

Details

Specifications - Technical Data

Model Size W×L
(mm)		 Number
of decks		 Incline
(°)		 Mesh Size
(mm)		 Max input size
(mm)		 Oper.Speed
(RPM)		 Double amplitude
(mm)		 Capacity
(t/h)		 Power
(kW)
S5X1545-2 1500×4500 2 18(18-25) 2-70 200 800-900 7-12 45-380 11
S5X1545-3 1500×4500 3 18(18-25) 2-70 200 800-900 7-12 45-380 15
S5X1845-2 1800×4500 2 18(18-25) 2-70 200 800-900 7-12 60-450 15
S5X1845-3 1800×4500 3 18(18-25) 2-70 200 800-900 7-12 60-450 22
S5X1860-2 1800×6000 2 18(18-25) 2-70 200 800-900 7-10 75-600 15
S5X1860-3 1800×6000 3 18(18-25) 2-70 200 800-900 7-12 75-600 30
S5X1860-4 1800×6000 4 18(18-25) 2-70 200 800-900 7-12 75-600 37
S5X2160-2 2100×6000 2 18(18-25) 2-70 200 800-900 7-12 85-700 22
S5X2160-3 2100×6000 3 18(18-25) 2-70 200 800-900 7-12 85-700 30
S5X2160-4 2100×6000 4 18(18-25) 2-70 200 800-900 7-11 85-700 37
S5X2460-2 2400×6000 2 18(18-25) 2-70 200 800-900 7-12 100-800 22
S5X2460-3 2400×6000 3 18(18-25) 2-70 200 800-900 7-11 100-800 30
S5X2460-4 2400×6000 4 18(18-25) 2-70 200 800-900 7-10 100-800 37
S5X2760-2 2700×6000 2 18(18-25) 2-70 200 800-900 7-12 120-900 30
S5X2760-3 2700×6000 3 18(18-25) 2-70 200 800-900 7-11 120-900 37
S5X3072-2 3000×7200 2 20(20-25) 2-70 200 800-900 7-11 150-1200 37
S5X3075-2T 3000×7200 2 20(20-25) 2-150 300 800-900 7-12 180-1800 22×2
S5X3075-3T 3000×7200 3 20(20-25) 2-150 300 800-900 7-12 180-1800 30×2
S5X3680-2T 3600×7500 2 21(20-25) 2-150 300 800-900 7-12 225-2250 30×2
S5X3680-3T 3600×7500 3 20(20-25) 2-150 300 800-900 7-12 225-2250 37×2
