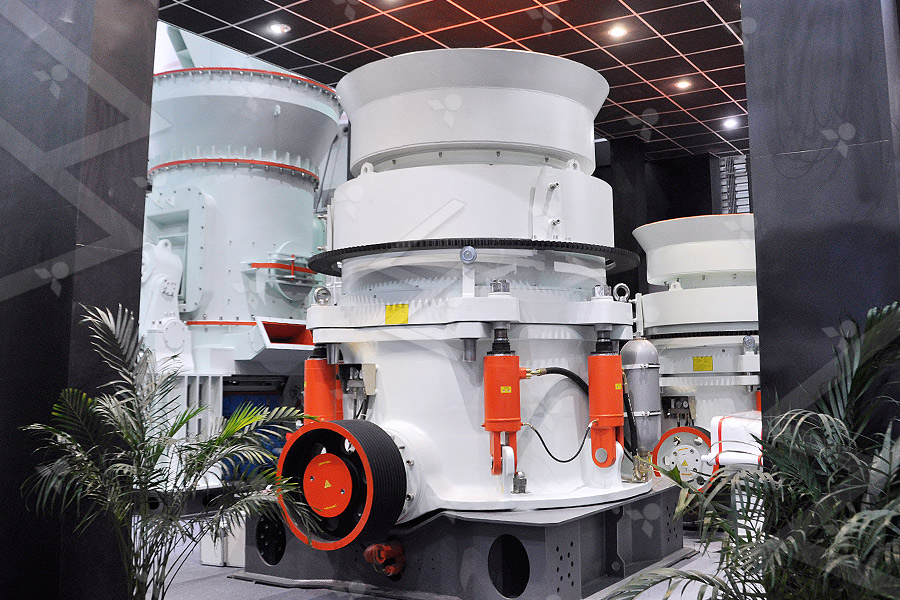

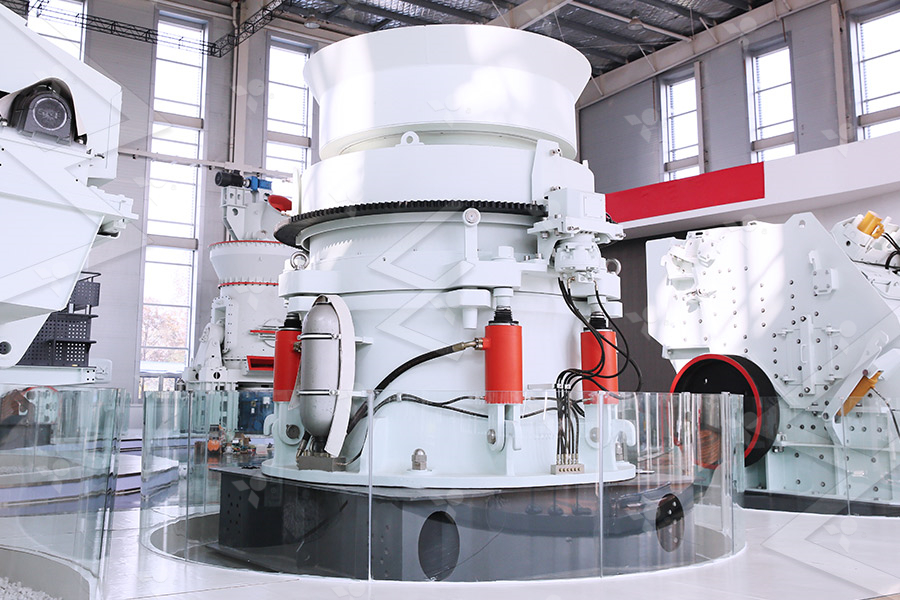

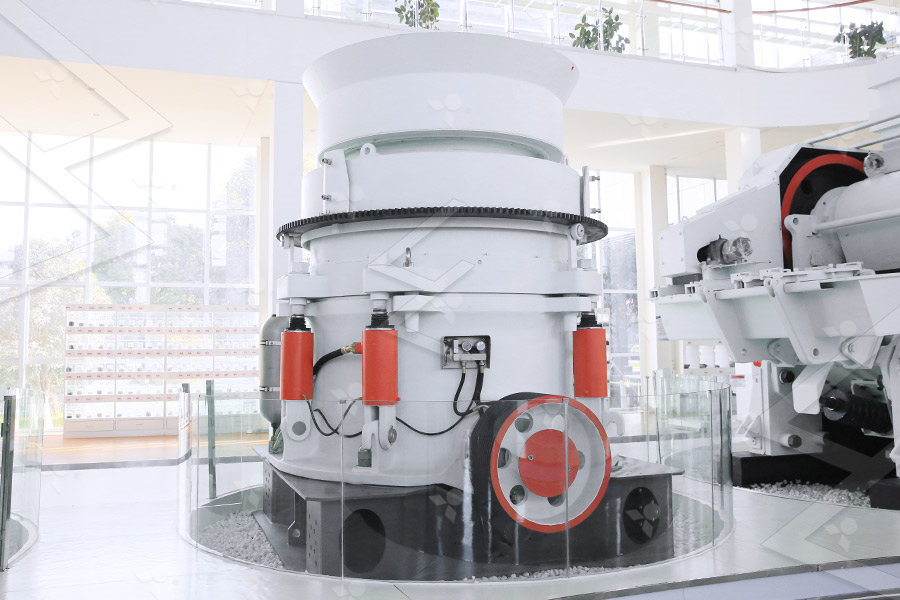

HPT Hydraulic Cone Crusher

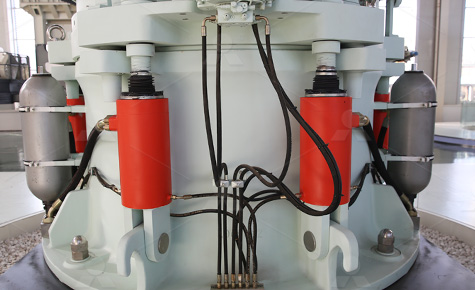

HPT series high-efficiency hydraulic cone crusher has a hydraulic lubrication control system to provide double protection for the bearings of the hydraulic cone crusher.
Working Principle of HPT Hydraulic Cone Crusher
Under the leading role of eccentric sleeve, the movable cone of the HPT Series high-efficiency hydraulic cone crusher does rotary and pendulum movement which drives the broken walls squeeze and twist the raw material between the rolling ace tabular wall and it. According to laminated theory, the raw material is crushed and polished following their own texture by the force from different directions. Stable aggregate are produced finally. The eligible raw material falls down from the gap of the broken wall. The others will be kept crushing until it reaches the desired size.<img class=”size-full wp-image-542 aligncenter” src=”https://www.lhitcrusher.com/wp-content/uploads/2025/02/hpt1.jpg” alt=”” width=”475″ height=”290″ />

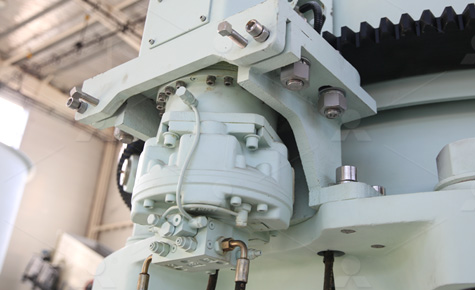

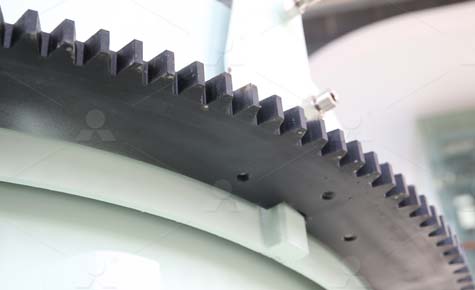

HPT Hydraulic Cone Crusher Details
Specifications - Technical Data
Model | Cavity (coarse/fine) | Close Side feed opening(mm) | Min CSS (mm) | Capacity (t/h) | Power (kW) |
HPT100 | C1 Extra Coarse | 140 | 19 | 75-140 | 90 |
C2 Coarse | 100 | 13 | 60-110 | ||
M Medium | 70 | 9 | 52-100 | ||
F1 Fine | 50 | 9 | 50-95 | ||
F2 Extra Fine | 20 | 6 | 45-90 | ||
HPT200 | C2 Coarse | 185 | 19 | 145-250 | 160 |
M Medium | 125 | 16 | 135-235 | ||
F1 Fine | 95 | 13 | 115-220 | ||
F2 Extra Fine | 75 | 10 | 90-190 | ||
F2 Extra Fine | 80 | 10 | 110-240 | ||
HPT300 | C1 Extra Coarse | 230 | 25 | 220-440 | 250 |
C2 Coarse | 210 | 19 | 190-380 | ||
M Medium | 150 | 16 | 175-320 | ||
F1 Fine | 105 | 13 | 145-280 | ||
F2 Extra Fine | 80 | 10 | 110-240 | ||
HPT400 | C1 Extra Coarse | 295 | 30 | 300-630 | 315 |
C2 Coarse | 251 | 25 | 285-560 | ||
M Medium | 196 | 20 | 250-490 | ||
F1 Fine | 110 | 13 | 180-345 | ||
F2 Extra Fine | 90 | 10 | 135-320 | ||
HPT500 | C1 Extra Coarse | 330 | 38 | 425-790 | 400 |
C2 Coarse | 290 | 30 | 370-700 | ||
M Medium | 210 | 22 | 330-605 | ||
F1 Fine | 135 | 16 | 270-535 | ||
F2 Extra Fine e | 95 | 13 | 220-430 | ||
HPT800 | C1 Extra Coarse | 350 | 38 | 570-1200 | 630 |
C2 Coarse | 299 | 32 | 520-1050 | ||
M Medium | 265 | 25 | 475-950 | ||
F1 Fine | 220 | 16 | 370-800 | ||
F2 Extra Fine | 150 | 13 | 310-600 |
