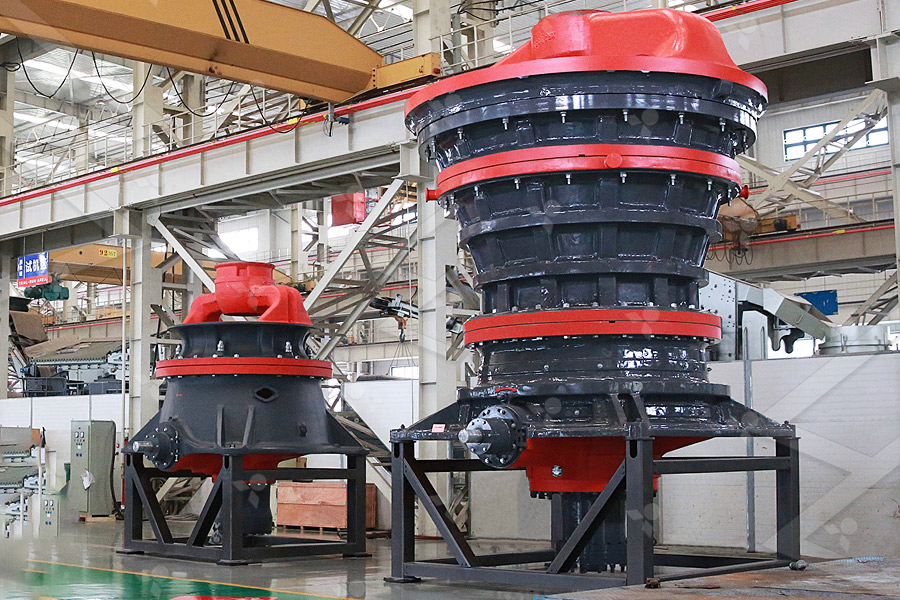

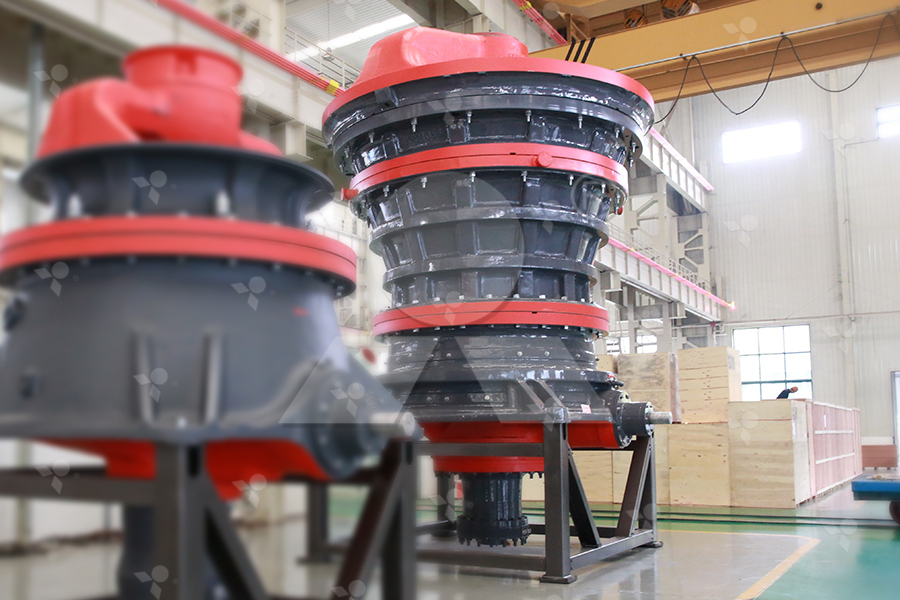

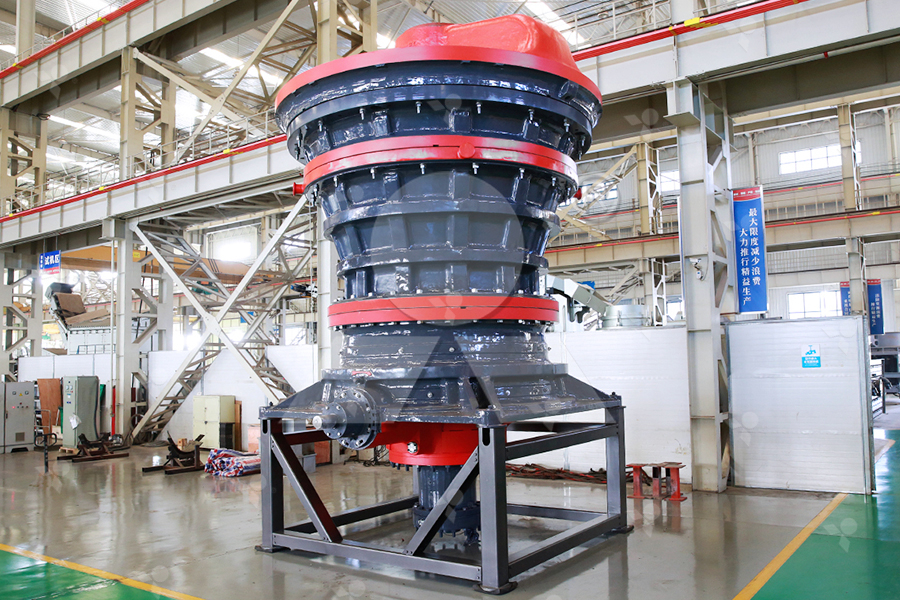

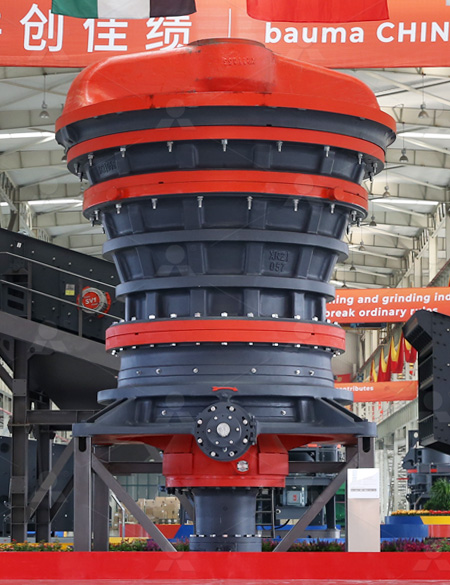

HGT Hydraulic Gyratory Crusher
The automatic control system, the greatest feature of HGT Hydraulic Gyratory Crusher, makes operation more convenient.
Working Principle

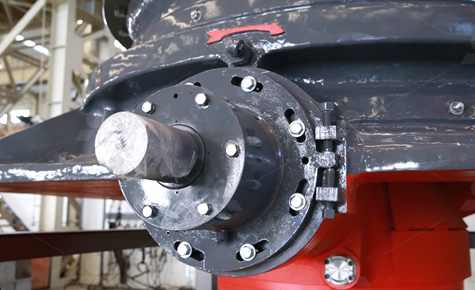

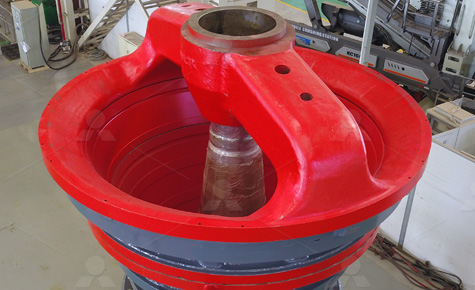

HGT Hydraulic Gyratory Crusher consists of beam, upper frame, middle frame, lower frame, moving cone, eccentric sleeve, transmission part and hydraulic cylinder part. Horizontal shaft driven by motor rotates constantly. Then horizontal axis makes eccentric sleeve rotate by gear, after that eccentric sleeve will drive the moving cone to swing circularly, so as to realize crushing process.
Details
Specifications - Technical Data
| Model | Inlet size (mm) | Outlet size (mm) | Capacity (t/h) | Power (kw) | Dimensions(mm) |
| HGT 4265 | 1065 | 140-175 | 2015-2875 | 400 | 3940×4170×6900 |
| HGT 5065 | 1270 | 150-175 | 2400-2940 | 400 | 4460×4430×7610 |
| HGT 5475 | 1370 | 150-200 | 2890-3490 | 450 | 4930×4925×8410 |
| HGT 6275 | 1575 | 150-200 | 2895-4335 | 450 | 5580×5250×9090 |
| HGT 6089 | 1525 | 165-230 | 4200-5810 | 630 | 5590×5445×10470 |
| HGT 60110 | 1525 | 175-250 | 5540-8895 | 1250 | 6200×5940×11390 |
