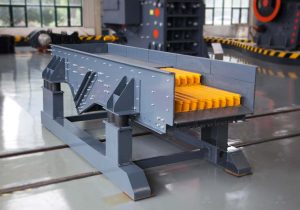

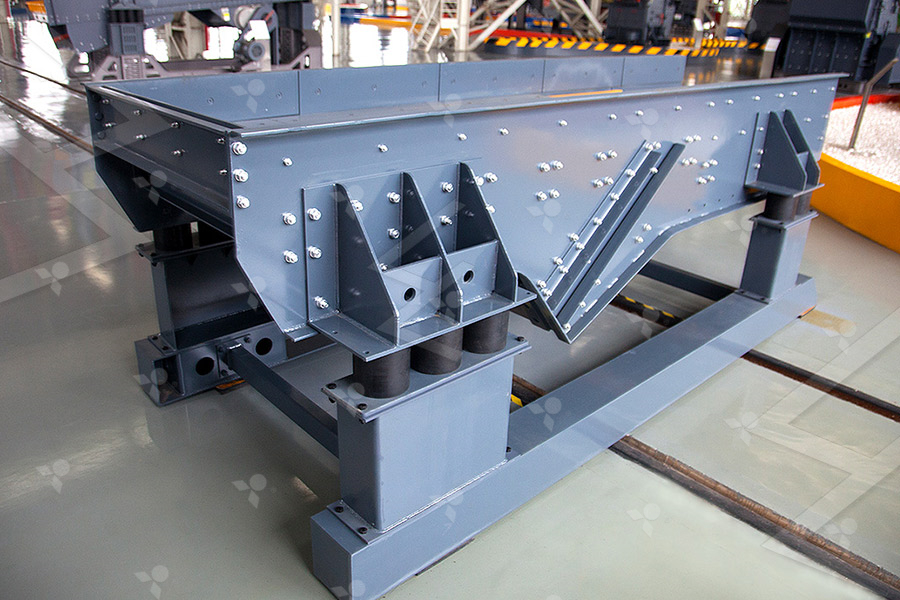

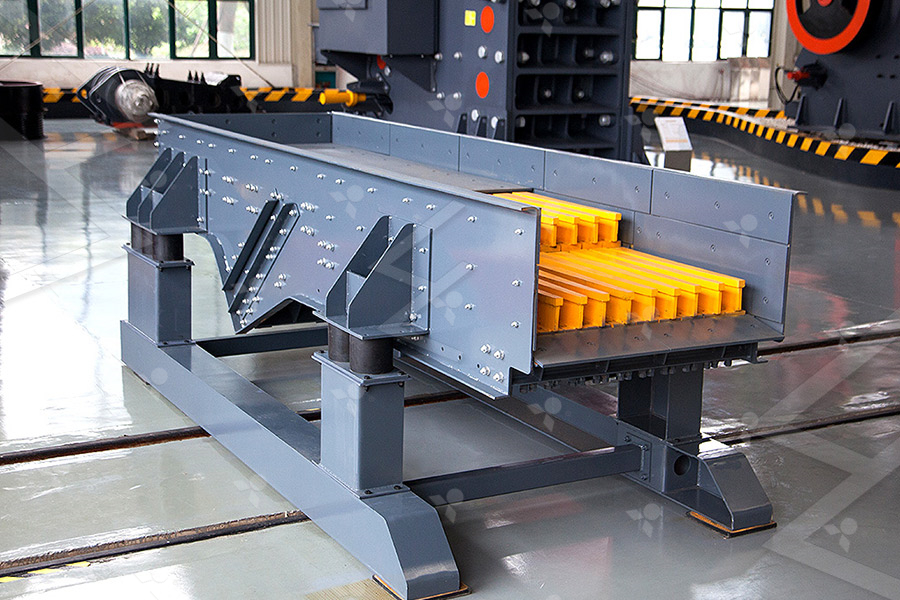

GF Series Vibrating Feeder
GF Series Vibrating Feeder can match with Jaw Crusher, Primary Impact Crusher and Hammer Crusher, etc.
Working Principle

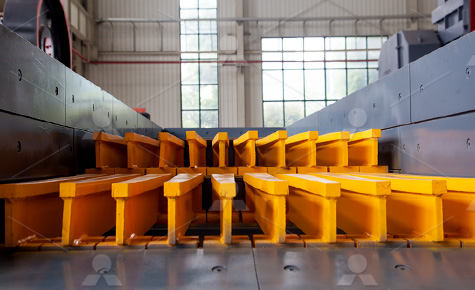

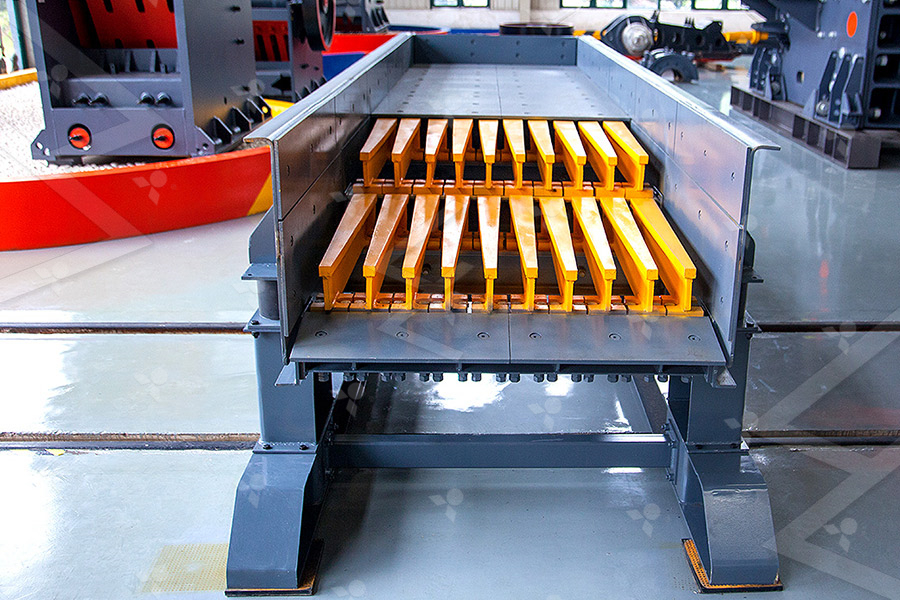

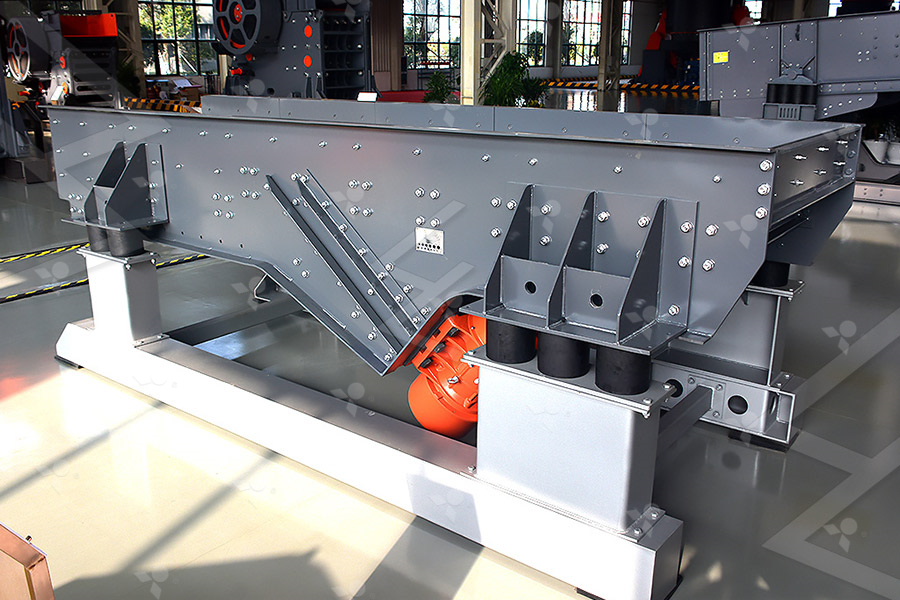

GF Series Vibrating Feeder is driven by the vibrating motor. The material pushed slowly and evenly from the input end to the output end. Meanwhile, the material will be screened by the grizzly bars to make the stone more even.

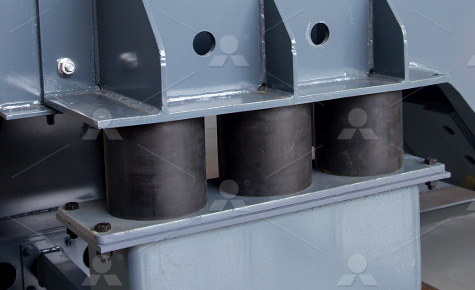

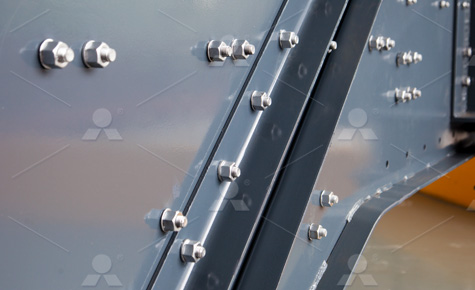

Details
Specifications - Technical Data
| Model | Feeding Chute Size
（mm） |
Max Feeding Size （mm） |
Max Capacity （t/h） |
Power KW （HP） |
Overall Dimension(LxWxH)
（mm） |
Weight （t） |
| GF0942 | 900×4200 | 500 | 280 | 2×3.7(5) | 4200×1520×1480 | 3 |
| GF0942M | 900×4200 | 500 | 280 | 2×3.7(5) | 4200×1520×1480 | 3 |
| GF0942S | 900×4200 | 500 | 280 | 2×3.7(5) | 4200×1520×1480 | 3.3 |
| GF1245 | 1200×4500 | 700 | 450 | 2×7.5(5) | 4650×1870×1555 | 4.6 |
| GF1245M | 1200×4500 | 700 | 450 | 2×7.5(5) | 4650×1870×1555 | 4.6 |
| GF1245S | 1200×4500 | 700 | 450 | 2×7.5(5) | 4650×1870×1555 | 4.9 |
