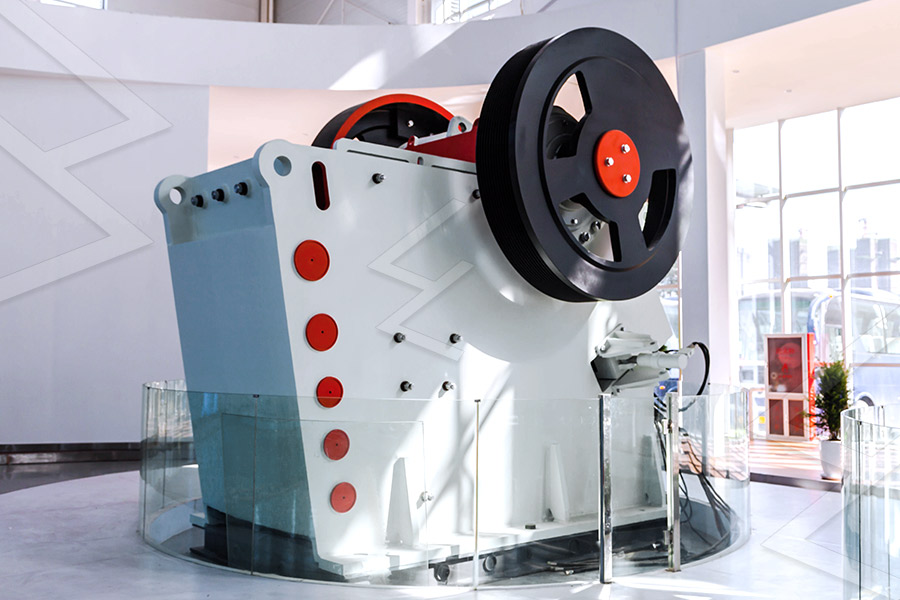

European Type Jaw Crusher

Short Description :

European Type Jaw Crusher adopts world-class technology and high-end raw materials, which can crush hard stones or ores.


  • Materials: River pebbles, gold ore, quartz sand, basalt, quartz stone and other materials
  • Application : Gravel yard, mining, coal mining, concrete mixing station, dry mortar, power plant desulfurization, quartz sand, etc.
  • Capacity: 12-650 T/H
  • Advantages: Excellent quality, high output and long service life
  • Output Size : 10-275mm

Product Details

Online Message

Based on advantages of excellent quality, large output and long service life, this machine can be widely used in mining machinery, road, construction metallurgy, etc.

Working Principle

The crushing method of European type jaw crusher is dynamic squeeze. The working principle is: the electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or split when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

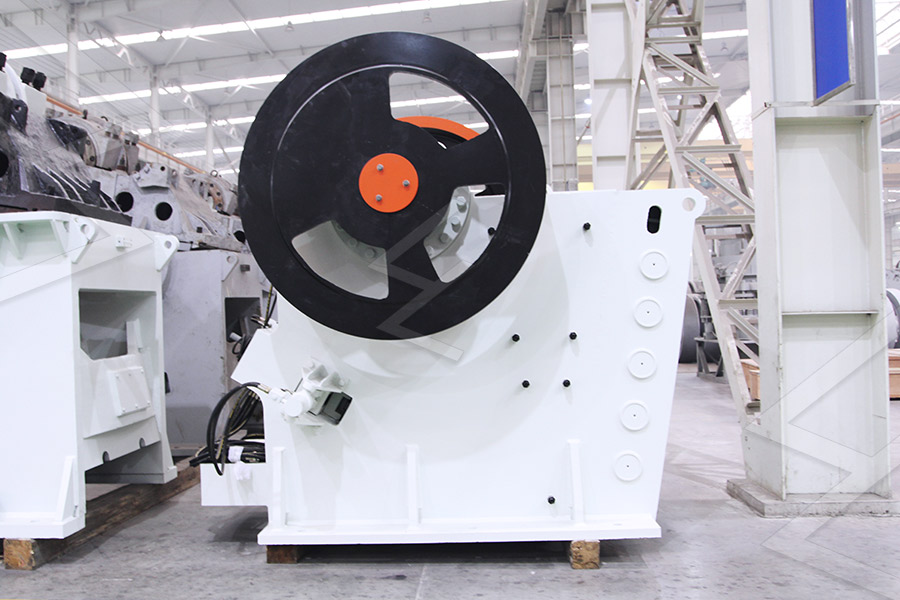

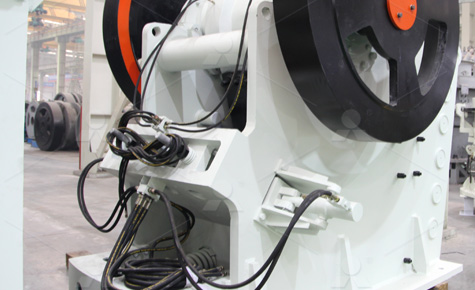

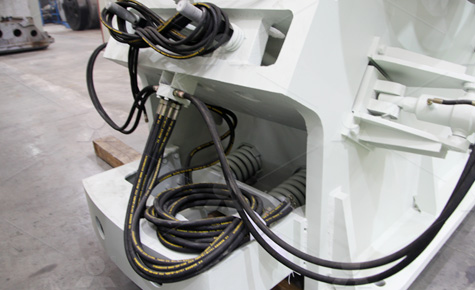

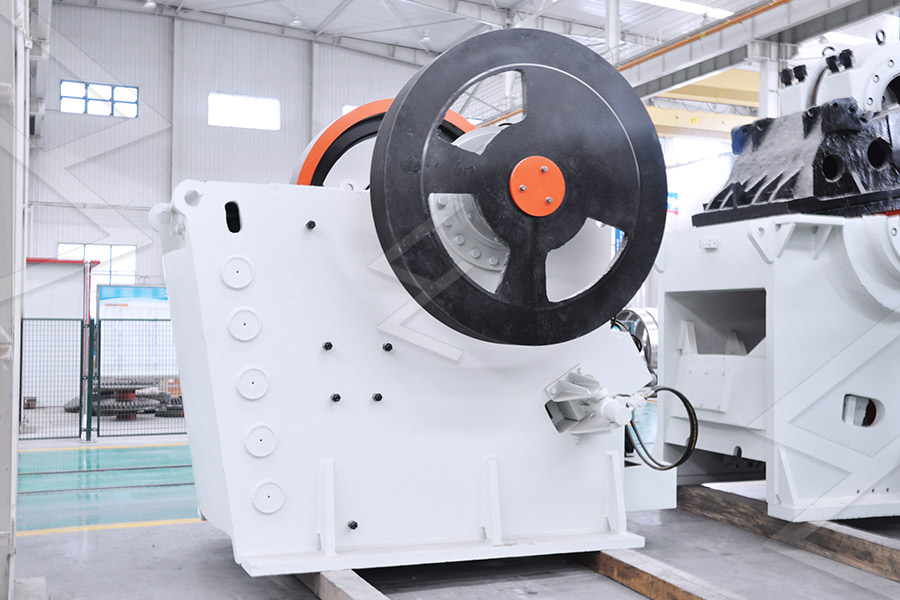

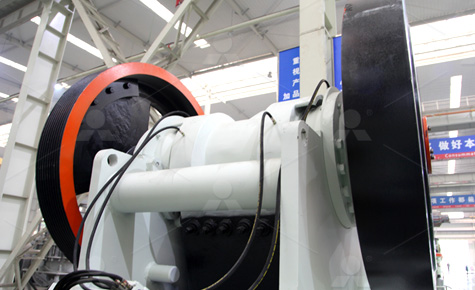

European Type Jaw Crusher Details

Specifications - Technical Data

Model Feed opening
(mm)
Maximum feed
size(mm)
CSS min-max
(mm)
Capacity
(tph)
Power
KW(HP)
Dimension (L×W×H)
(mm)
Weight (t)
PEW200×1300 200X1300 150 10-30 12-35 30(40) 1320X2150X1176 6
PEW250×1000 250X1000 220 20-40 15-50 30(40) 1400X1850X1310 6
PEW250×1200 250X1200 220 20-40 20-50 37(50) 1450X2150X1175 7
PEW400×600 400X600 350 35-85 15-70 37(50) 1920X1460X1840 7.5
PEW760 760X1100 620 75-200 150-350 110(150) 2950X2360X2760 24
PEW860 840X1100 720 100-225 200-500 132(175) 3300X2320X3120 32
PEW1100 1100X1200 940 150-275 300-650 185(250) 4140X2660X3560 59.2
