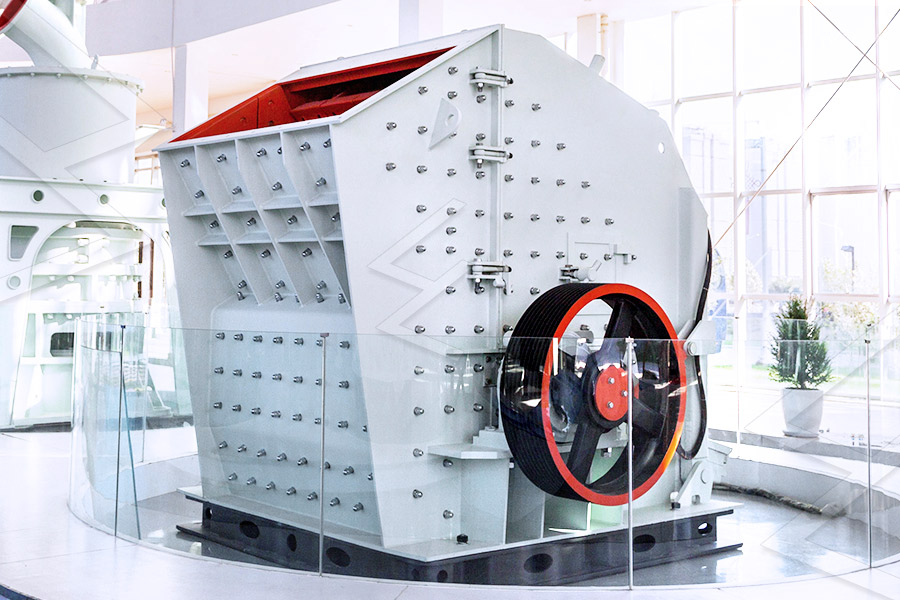

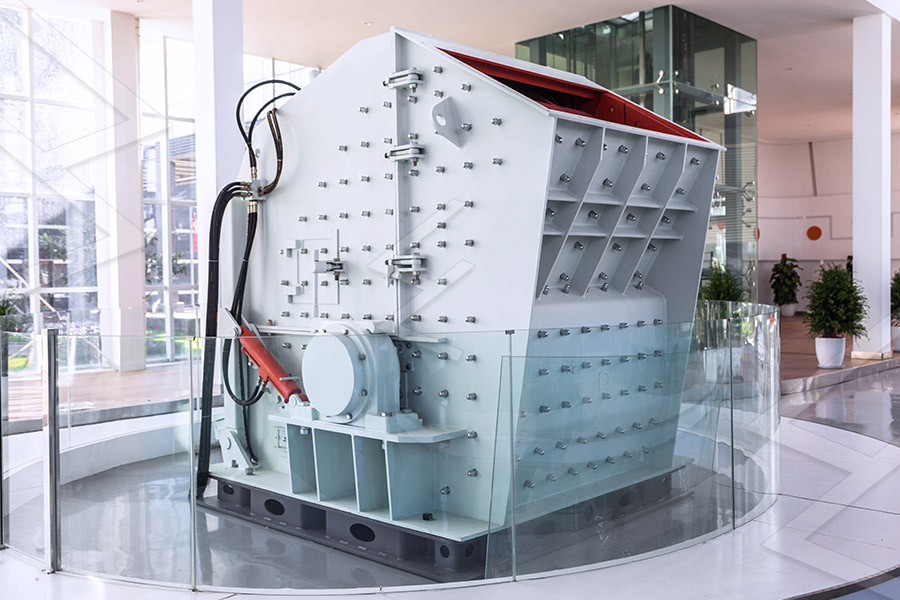

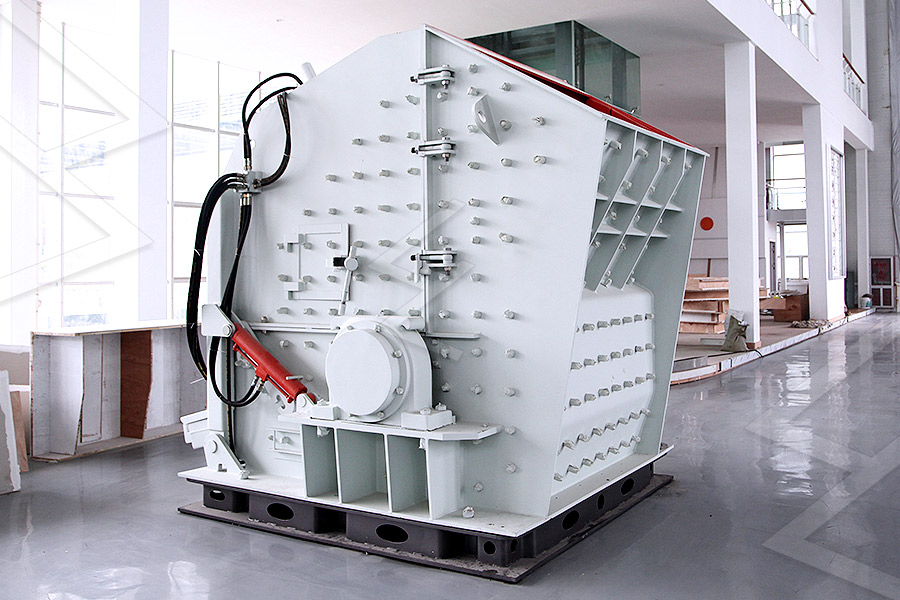

European Impact Crusher

Short Description :

European impact crusher is very suitable for coarse, medium and fine crushing of various soft and medium hard ores.


  • Materials: river pebbles, granite, basalt, limestone, cement clinker, quartz, iron ore, bauxite, etc.

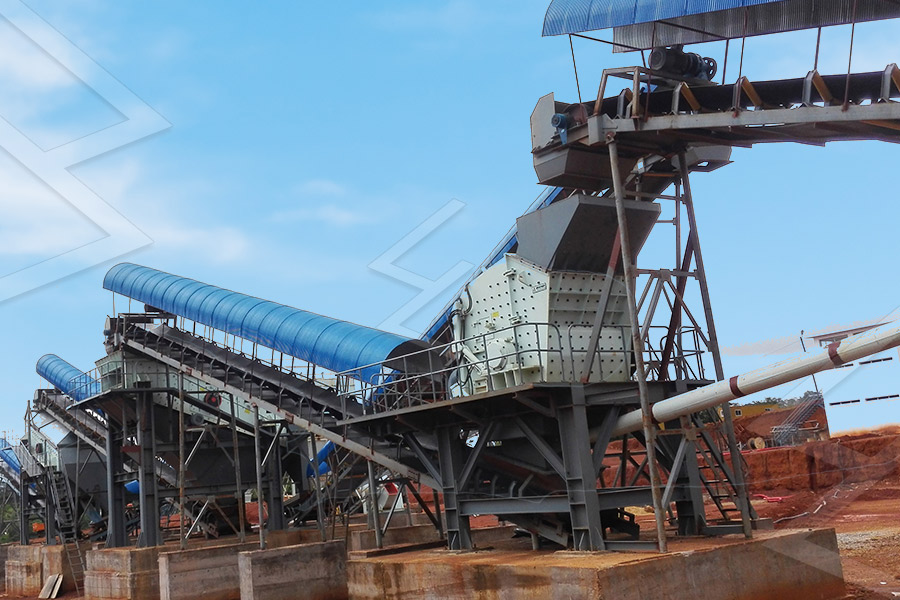

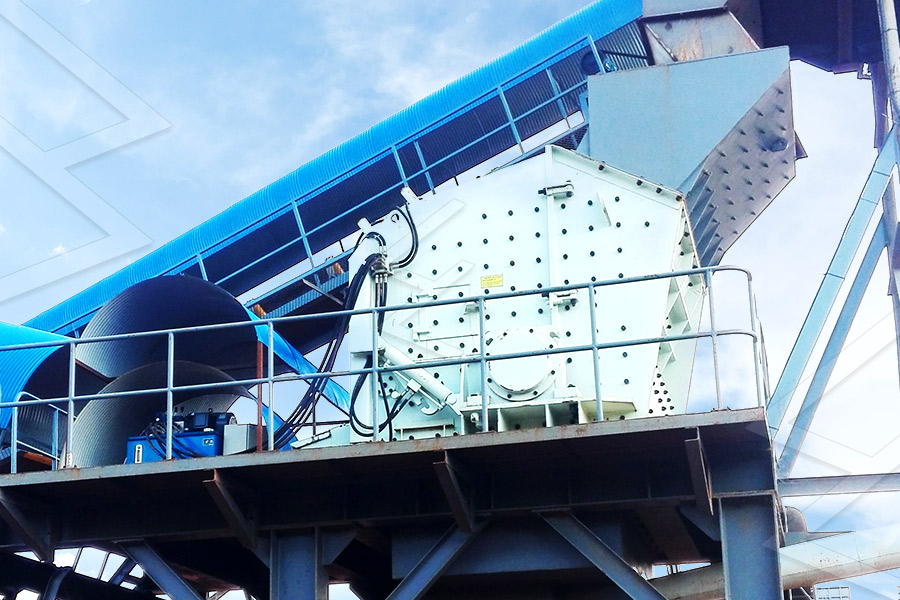

  • Application : Ore crushing, railway, highway, energy, cement, chemical industry, construction, etc
  • Capacity: 90-480 T/H
  • Advantages: Large production volume, long service life and low energy consumption
  • Output Size : 4-65 mm

Product Details

Online Message

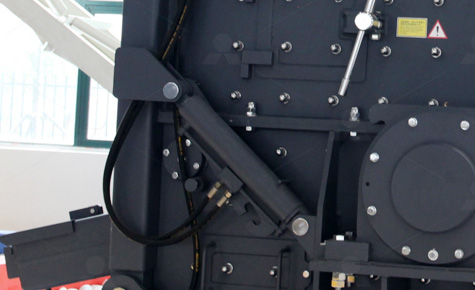

European impact crusher takes advantages of safety operation and large carrying capacity, particularly, the semi automatic adjusting device highlights intellectualization and advancement.

Working Principle of European Impact Crusher

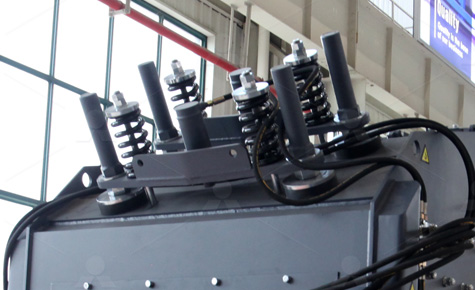

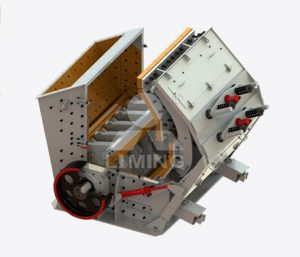

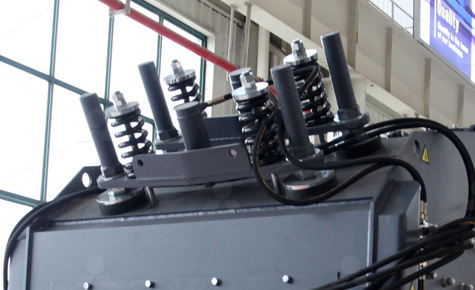

European Type Impact Crusher is a kind of crusher which crush the raw material by using impact energy. When enter the zone of the board hammer, the raw material is crushed by the high-speed impact of it. And then the raw material is threw up to the impact device installed on the rotor and is crushed again. Then the raw material is crushed for another time when it is rebounded from impact liner to the zone of board hammer. The process repeats until the raw material is crushed into the desired size and discharges from the bottom of the machine. The final product size and shape can be changed by adjusting the gap between impact frame and rotor frame. European Type Impact Crusher adopts spring safety device behind the impact liner. When the non-crushed items enter the crusher chamber, the impact frame front and back will be draw back and the non-crushed items will be discharged from machine.

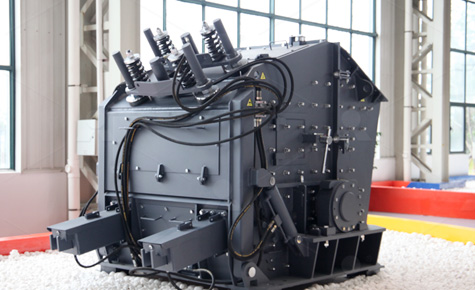

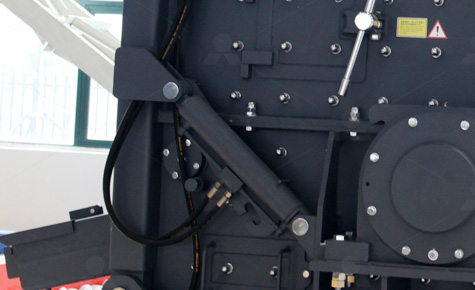

European Impact Crusher Details

Specifications - Technical Data



Table 1: for crusher with three crushing chambers

Model Rotor size
(mm)
Feed opening
(mm)
Max. Feed
size (mm)
capacity
(t/h)
Power
(kW)
weight (t) Overall dimension
(mm)
PFW1214Ⅲ Ф1150×1400 570×1430 250 90-170 132(175) 16 2550×2310×2100
PFW1315Ⅲ Ф1300×1500 625×1530 300 180-270 200(270) 20 2960×2570×2380
PFW1318Ⅲ Ф1300×1800 625×1830 300 220-300 250(350) 23 2960×2870×2380
PFW1415Ⅲ Ф1400×1500 800×1530 350 280-350 250(350) 22.5 3120x2650x2660



Table 2: for crusher with two crushing chambers

Model Rotor size
(mm)
Feed opening
(mm)
Max. Feed
size (mm)
capacity
(t/h)
Power
(kW)
weight (t) Overall dimension
(mm)
PFW1214Ⅱ Ф1150×1400 1100×1430 500 130-200 132(175) 18.5 2400x2310x2550
PFW1315Ⅱ Ф1300×1500 1200×1530 600 180-320 200(270) 21.5 2700x2570x2800
PFW1318Ⅱ Ф1300×1800 1200×1830 700 240-400 250(350) 25.5 2700x2870x2800
PFW1415Ⅱ Ф1400×1500 1300×1530 700 300-480 250(350) 25 2900x2700x3000
