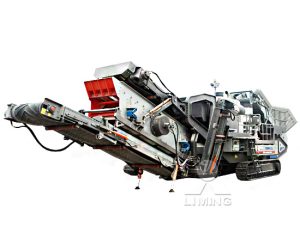

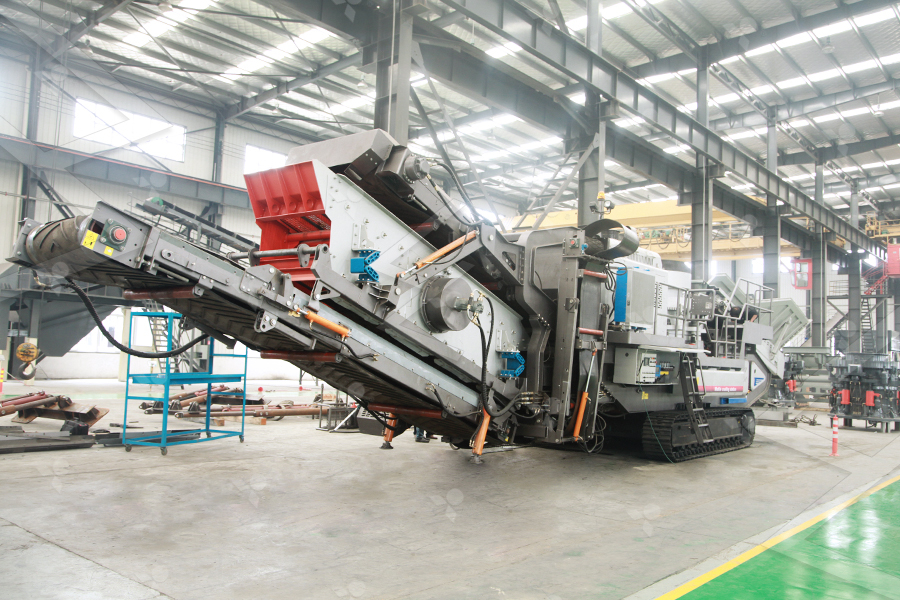

Crawler Mobile Crusher
As crushing and screening equipment, Crawler type Mobile Crushing Plant with pedrail can move on the production site automatically.
Working Principle
Crawler mobile crushing station includes jaw crusher crawler mobile crushing station, impact crusher crawler mobile crushing station, cone crusher crawler mobile crushing station and screening crawler mobile crushing station.
Crawler mobile crushing station is a series of rock and construction waste crushing equipment, which greatly expands the concept of coarse and fine crushing. Its design concept is to stand on the customer’s standpoint and take the elimination of obstacles to the crushing operation brought to the customer by the crushing site, environment, complicated basic configuration and complicated logistics as the primary solution. Based on the new concept principle of “close processing” of materials, it provides customers with simple and low-cost project operation hardware facilities. According to different crushing process requirements, it can be composed of “crushing first and then screening”, or “screening first and then crushing”. The crushing station can be combined into a two-stage screening system of coarse crushing and fine crushing according to actual needs, or it can be combined into a three-stage screening system of coarse, medium and fine. It has high flexibility and can meet the needs of different customers.

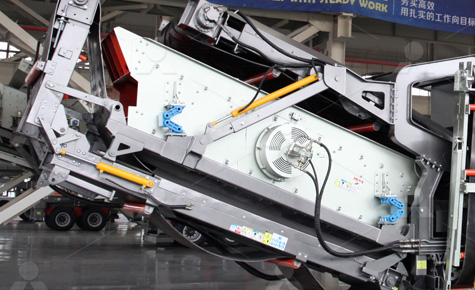

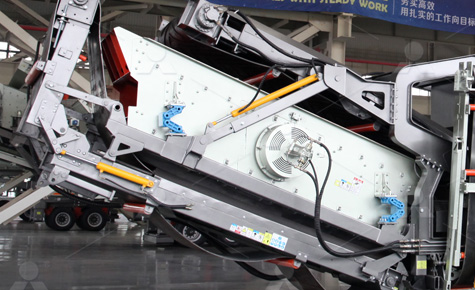

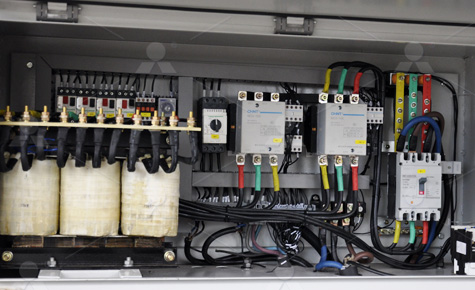

Details
Specifications - Technical Data
Series | Standard Model | Feeding equipment | Crushing equipment | Transportation Dimension(mm) | Weight (ton) (Approximately) |
Model | Model | Disassembly L×W×H | |||

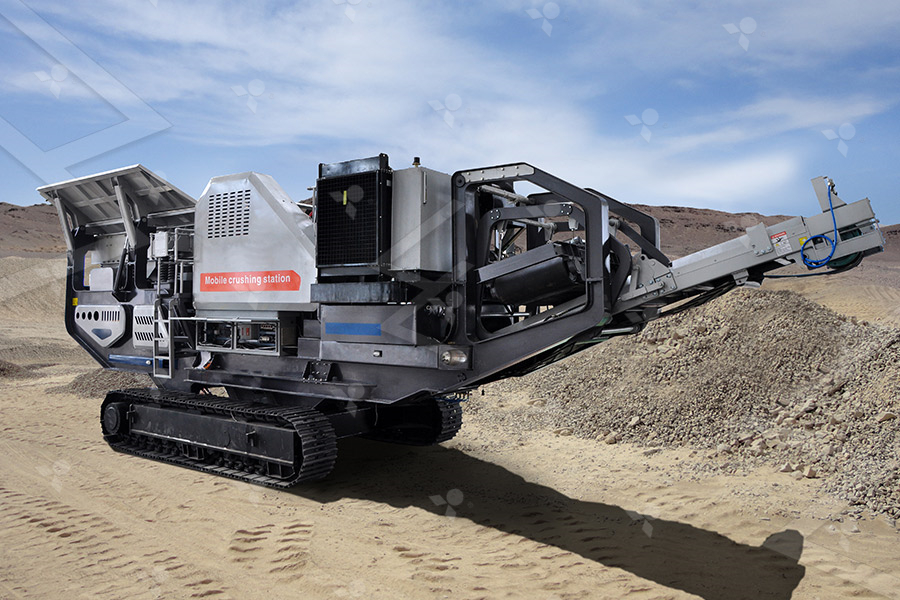

Crawler type mobile jaw/impact crusher | YG935E69L | TSW0936 | PE600×900 | 12450X2800X3800 | 40 |
YG1139EW760L | TSW1139 | PEW760 | 13460X3000X3800 | 50 | |
YG1345HJ110L | TSW1345 | HJ110 | 14212X3000X3800 | 50 | |
YG1345EW860L | TSW1345 | PEW860 | 14827X3000X3800 | 63 | |
YG1139FW1214IIL | TSW1139 | PFW1214II | 13913X3000X3750 | 50 | |
YG1345FW1315IIL | TSW1345 | PFW1315II | 14340X3000X3800 | 63 |
Series | Standard Model | Feeding equipment | Crushing equipment | Transportation Dimension(mm) |
Weight (ton) (Approximately) |
Model | Model | Disassembly L×W×H | |||

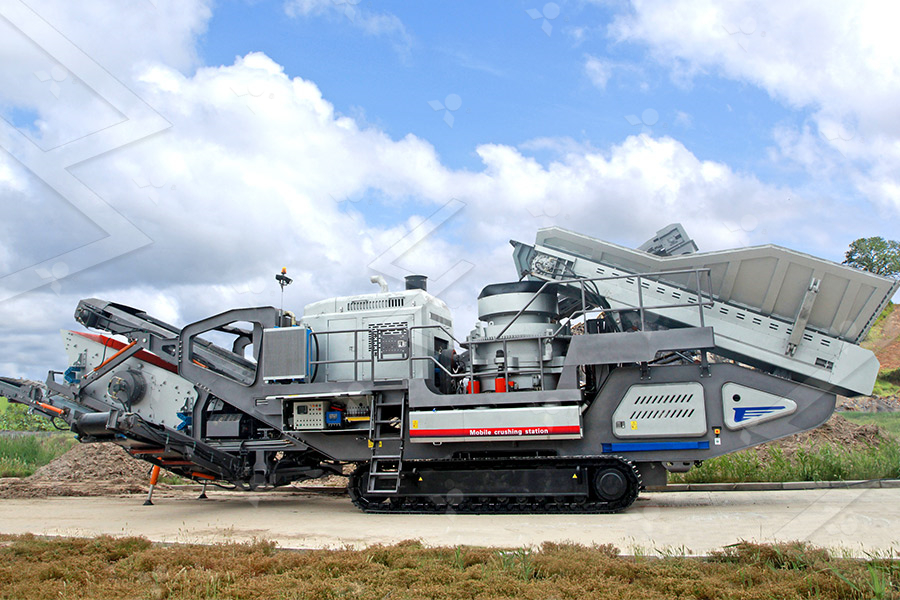

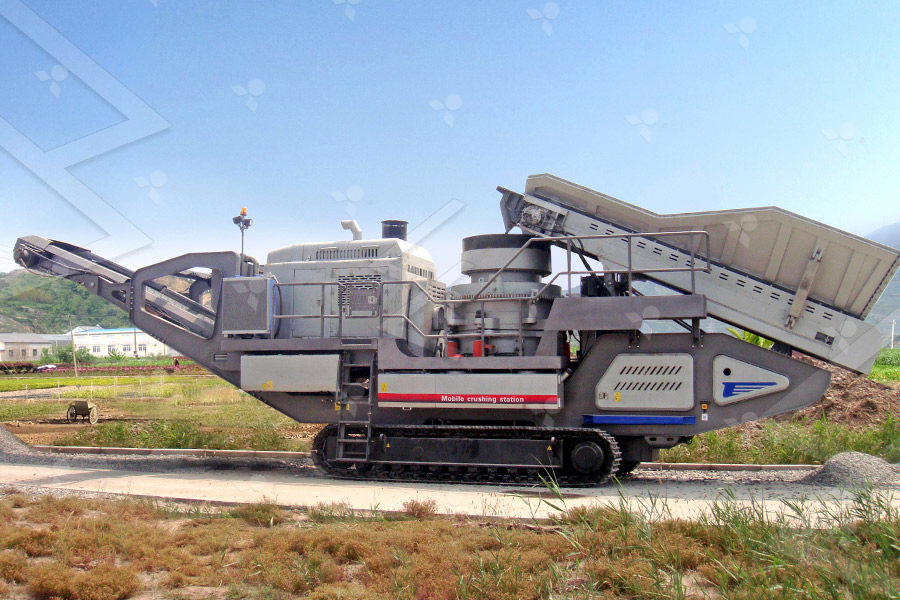

Crawler type cone crusher plant | YHST16L | GLD-10*4.5 | HST160H1 | 12000x2800x3493 | 35 |
YHST25L | GLD-12*4.8 | HST250 | 14766x3000x3700 | 50 | |
YHPT300L | GLD-12*4.8 | HPT300 | 14800x3000x3700 | 50 |
Series | Standard Model | Feeding equipment | Crushing equipment | Transportation Dimension(mm) |
Weight (ton) (Approximately) |
Model | Model | Disassembly L×W×H | |||
Crawler type mobile screening plant | Y2S1860AL | GLD-14/5.25 | 2YZS1860 | 17800X3200X3700 | 36.5 |
Y3S1860BL | GLD-12/3 | 3YZS1860 | 17000X3300X3600 | 38 | |
Y3S1848BL | GLD-12/3.8 | 3YZS1848 | 17000X3300X3600 | 36 | |
Y2S1848BL | GLD-12/3.8 | 2YZS1848 | 17000X3300X3500 | 34 |
