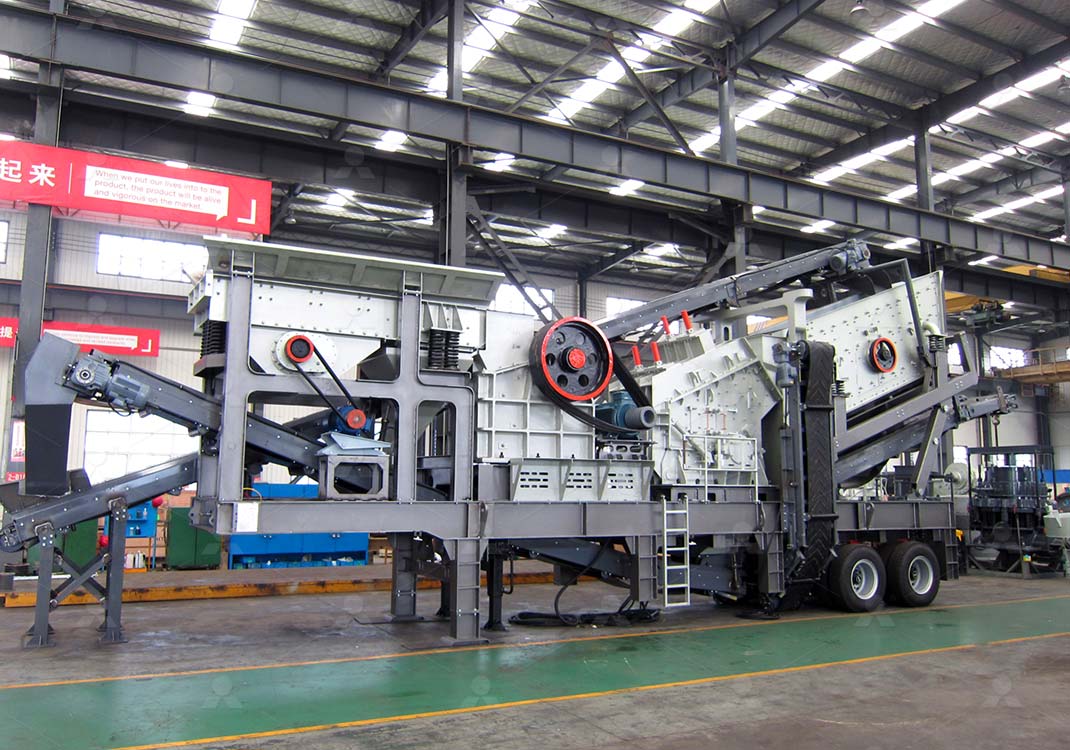

Combination Mobile Crusher

Short Description :

Combination Mobile Crusher is suitable for the case that project location should be changed frequently. This plant integrates vibrating feeder, primary crusher, secondary crusher and vibrating screen together, which provides holistic solutions for clients. And it takes advantages of small coverage area and convenient process.


  • Application : Secondary medium & fine crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
  • Advantages: Wide applications, Comprehensive functions

Product Details

Online Message

Learn More

  • Equipments integration
    Multiple combination mobile crushers can be equipped with crushing, screening, and conveying equipment based on material properties and processing requirements, with a high degree of integration.
  • High maneuverability
    In a short period of time, multiple combination mobile crushers can achieve different model unit exchange systems on the same vehicle body, adapting to a wide range of scenarios.
  • Saving transportation cost of raw material
    Mobile crushers can achieve on-site production, greatly reducing the cost of materials during transportation.
  • Flexible configuration
    According to the material characteristics and processing needs, different types of hosts can be configured, such as jaw crushers, impact crushers, cone crushers, and full car mounted belt conveyors can also be configured to meet the usage needs of different customers.
  • Independent power generation system
    The entire machine can be equipped with a high-power car mounted generator set, and customers can choose to operate with external power supply or independent drive according to the construction site.
  • Reliable quality and stable performance
    The combination mobile crusher is equipped with a mature host, with high transmission efficiency, strong bearing capacity, good wear resistance, and long service life.

Details

Specifications - Technical Data

Technical Data//Model Y3S23G93E46Y55B
Transportation size (mm) 14700x2900x4350
Weight(t) 45
Tire Configuration Dualaxial
Vibrating feeder GZD 960×3800
Crusher 1 PE400x600
Crusher2 PYB900
Vibrating screen 3YZS1237
Belt conveyer above screen B500x14m
Belt conveyer under screen B650x6m
Main belt conveyer B650x9m
Side belt conveyer B500x4m / 2
Electric control (standard) control box + control panel

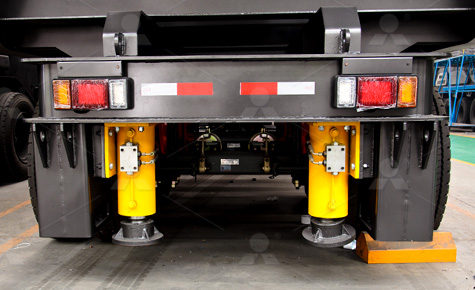

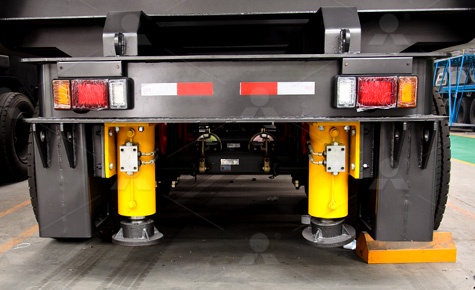

Support leg (standard) 4
