CI5X Series Impact Crusher China Manufacturers & Suppliers & Factory

Short Description :

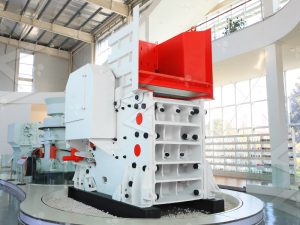

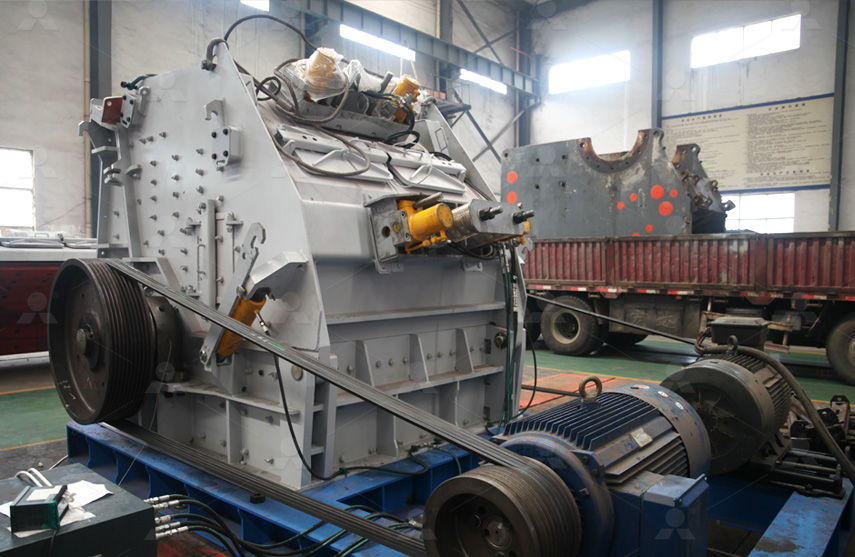

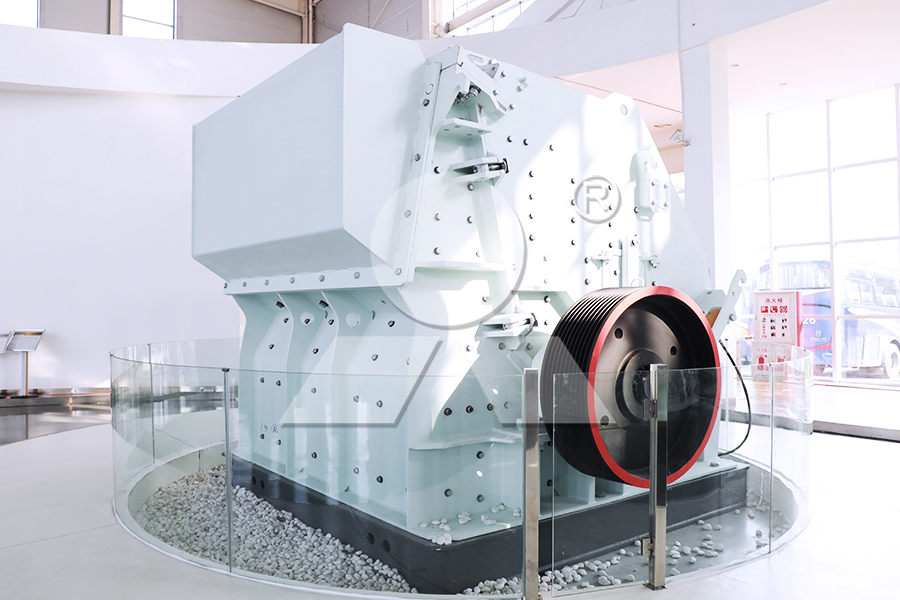

CI5X Impact Crusher is new equipment made in Liming Heavy Industry. This machine integrates many technology achievements including high-accuracy rotor, multifunctional hydraulic operating system and efficient involute crushing cavity, which can help clients win more benefits.

Application : Mining, metallurgy, construction, chemical, cement, refractory material, etc.
Capacity: 150-2000 T/H
Advantages: ANSYS, Famous bearing, Wear-resisting materials

Send email to us Get a quote

Product Details

Online Message

Working Principle

CI5X Series Impact Crusher crushes material by striking energy.when it works,the motor drives the rotor rotate at a high speed,on which the blow bar is installed .as soon as the material get into the affecting area of the blow bar,they will be stroke by the blow bar and be thrown to the impact devices around the rotor.the high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size.the clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.

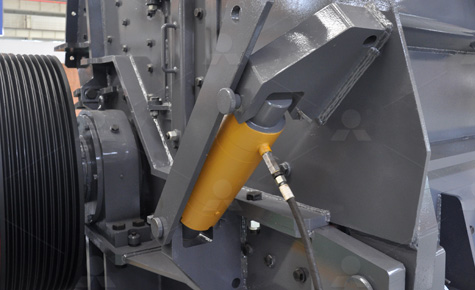

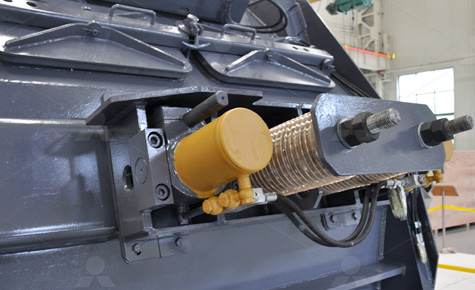

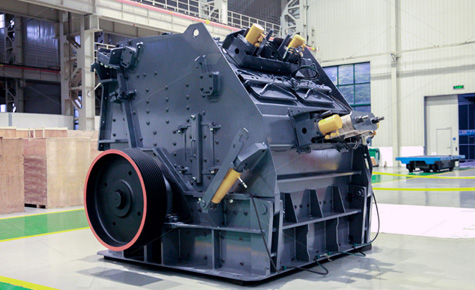

Details

Specifications - Technical Data

Model	Specifications(mm)	Feed opening(mm)	Max feed size(mm)	Capacity(t/h)	Power(kw)
CI5X1110	1100×1000	1020×820	500	150-200	160-200
CI5X1213	1200×1300	1320×880	550	200-300	200-250
CI5X1315	1300×1500	1540×930	600	250-350	250-315
CI5X1520	1500×2000	2040×995	400	400-600	400-500
CI5X1524	1500×2400	2516×767	400	500-700	560-630
CI5X1630	1600×2700	2740×787	400	600-900	710-800
CI5X1313	1300×1300	1320×1225	800	300-450	200-250
CI5X1415	1400×1500	1540×1320	900	350-550	250-315
CI5X1620	1600×2000	2040×1630	1100	500-900	400-500
CI5X2023	2000×2300	2310×1990	1300	1200-2000	1000-1260
