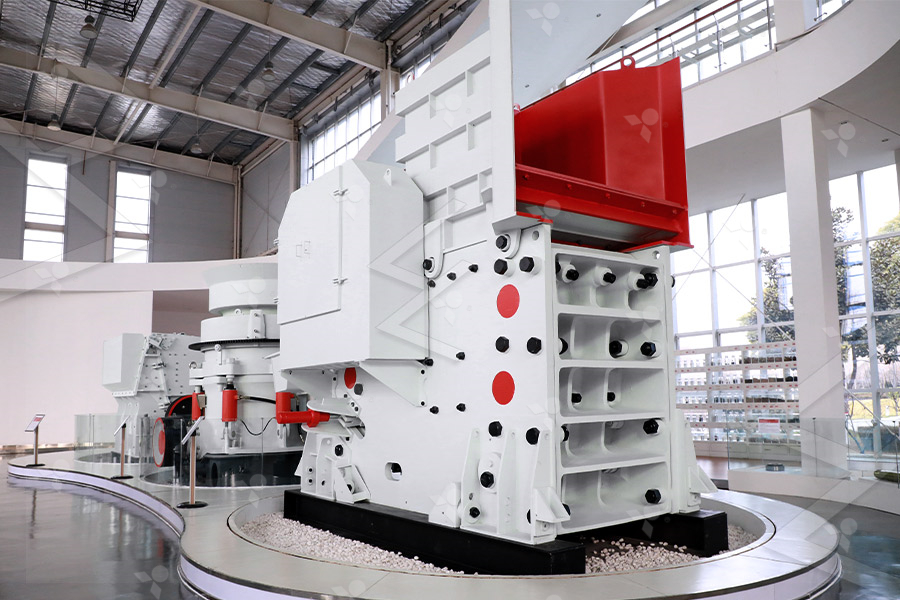

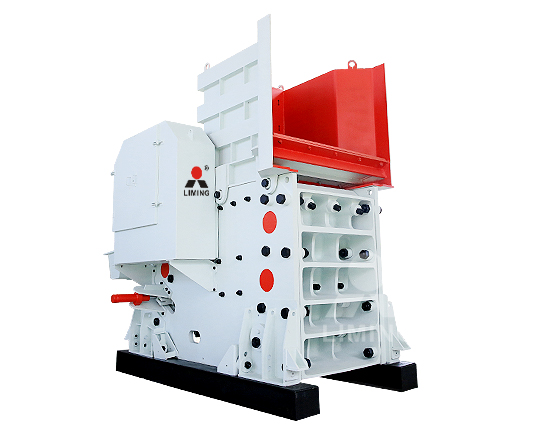

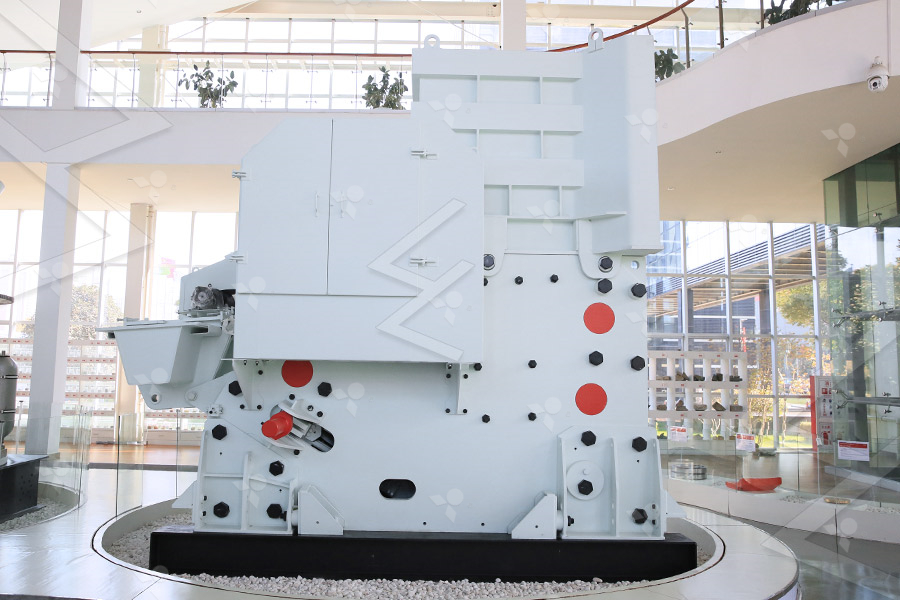

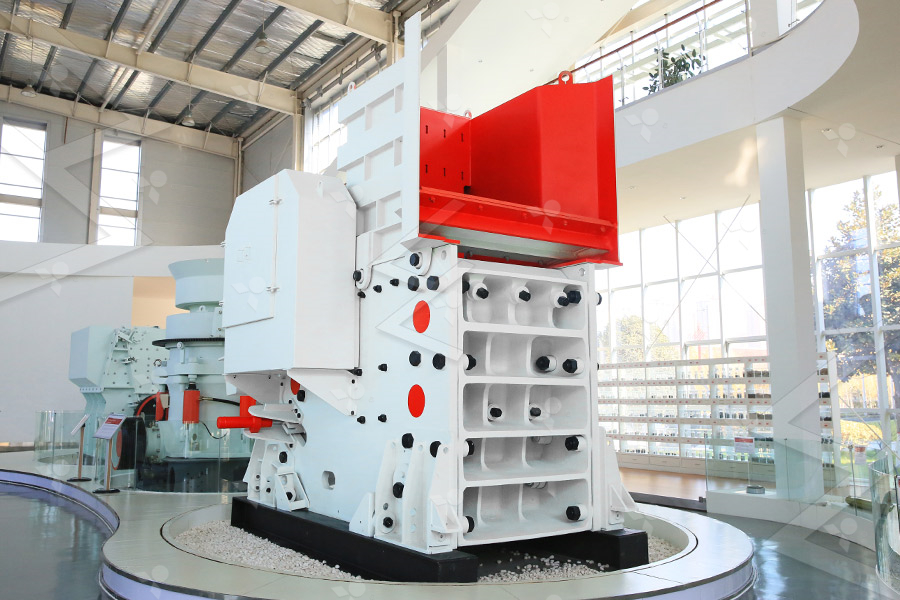

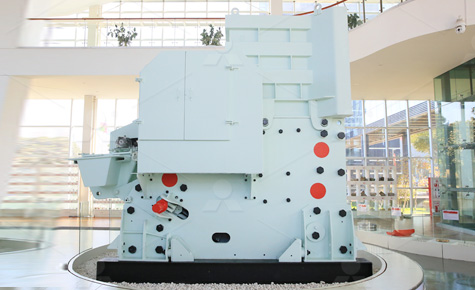

C6X Series Jaw Crusher

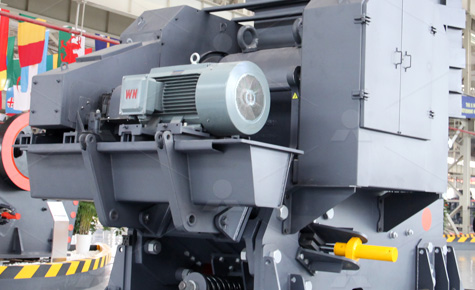

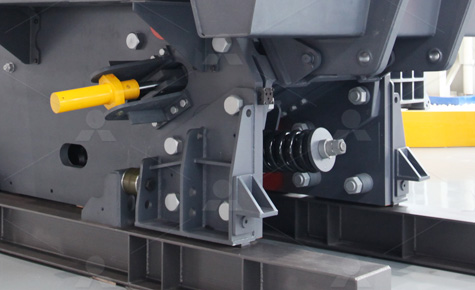

C6X Jaw Crusher is possess of detachable frame without welding structure, double wedge adjusting device, elastic limit damping device and integrated motor seat, which will make C6X Series Jaw Crusher popular in the market.
Working Principle
Input dynamic by motor, the pulley drives eccentric shaft to make the movable jaw move upwards and downwards with SPC belt. When the movable jaw moves forth toward the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which met the requirements will be discharged from the outlet. Since the motor keeps working, the crusher will crush and discharge periodically to achieve mass production.
Details
Specifications - Technical Data
| Model | Feed opening size(mm) |
Max Input size(mm) |
Outlet Adjustment Range(mm) |
Processing Capacity (t/h) |
Speed(r/min) | Power(kw) | Dimension (mm) |
| C6X80 | 520×800 | 420 | 60-150 | 80-290 | 350 | 75 | 2650×1540×1780 |
| C6X100 | 760×1000 | 630 | 70-175 | 130-420 | 260 | 110 | 3700×2440×2520 |
| C6X110 | 850×1100 | 720 | 80-200 | 160-550 | 230 | 160 | 3800×2450×2550 |
| C6X125 | 950×1250 | 800 | 100-250 | 230-760 | 220 | 160 | 4100×2750×2780 |
| C6X145 | 1100×1450 | 920 | 125-275 | 320-950 | 220 | 200 | 4400×3060×3210 |
| C6X160 | 1200×1600 | 1020 | 150-300 | 410-1150 | 220 | 250 | 5700×3650×3550 |
| C6X200 | 1500×2000 | 1200 | 175-300 | 610-1510 | 200 | 400 | 6500×3990×4260 |
